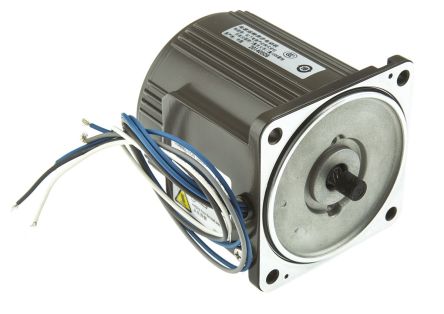

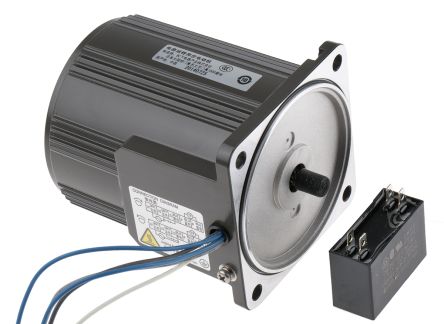

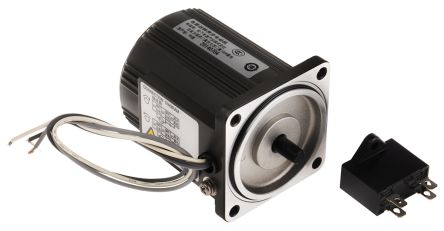

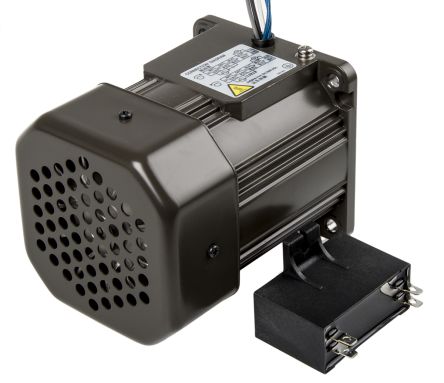

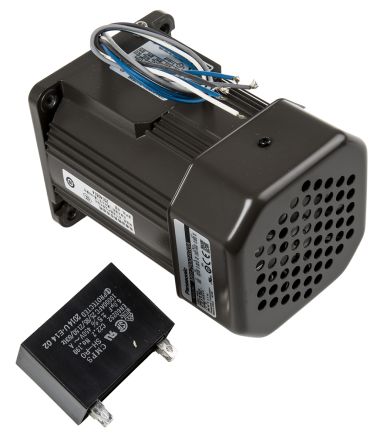

PANASONIC Motor Induction 1 Phase Series
Features :
- It is fitted for continuous running in one direction.
- Continuous time rating.
- The motor with national specifications is of heatproof class 120 (E); the motor with specifications compliant with overseas standards is of heatproof 130 (B).
- Because it is a capacitor-type induction motor, it has a high power factor and runs with a low noise level.
Note 1) The induction motor cannot make a quick-reversal run because of the torque acting in the opposite direction. Therefore stop the induction motor once, change the wire connections and make a reverse run.
Note 2) Induction Motor start-stop operation must not exceed 6-cycles per minute or demage may occur.
| Type | M61X6G4GGA ,M71X15G4GGA ,M81X15G4W ,M81X25G4GGA ,M91X40G4GGA ,M91Z60G4GGA ,M91Z90G4GGA |
|---|---|
| Watt | 6 ,15 ,25 ,40 ,60 ,90 |
| Voltage (V) | 220 / 230 |
| Phase | 1 |
