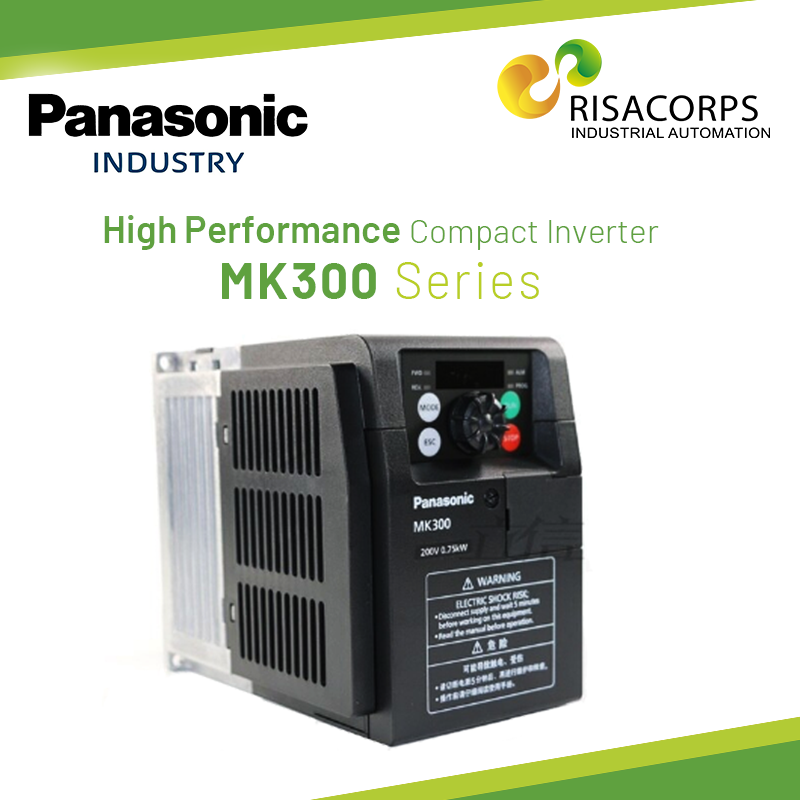

PANASONIC MK300-Series Compact Inverter
Accurate control based
on perfect function
| Type | AMK3000P22 ,AMK3000P42 ,AMK3000P72 ,AMK3001P52 ,AMK3002P22 ,AMK3000P74 ,AMK3001P54 ,AMK3002P24 ,AMK3003P74 ,AMK3005P54 ,AMK3007P54 ,AMK3000114 ,AMK3000154 |
|---|---|
| Phase | 1 Phase 200V ,3 Phase 400V |
0 People watching this product now!
Deskripsi
Deskripsi
Compact inverters with industry-leading control performance
- Top class overload and high-torque performance among small models
- Mode-selectable sensorless vector control function
Drive common motor without encoder to achieve high precision and high response speed.
200% torque output can be achieved at speed as low as 0.5Hz (in sensorless vector control mode) - Selected for dual-specification of standard load and light load
The product has clearly marked inverter power performance, which serves as a reference to the user in model selection.
The effect of “small horse drawing a big car” can be realized for particular industries. - Provided with a high-speed current limiting function
Even if excessive current flows momentarily due to load variation, MK300 will continue operation instead of tripping, thus improving productivity. It is effective for rapid acceleration of heavy-duty turntable and stirring of viscous substances like bread and flour, etc.
Produk Terkait
ABB General Industrial Drives ACS880 Series
The ACS880 is an all-compatible ABB industrial drive, offered in a range of wall-mounted drives, drive modules and cabinet-built drives.
ABB ACS880
ABB ACS880

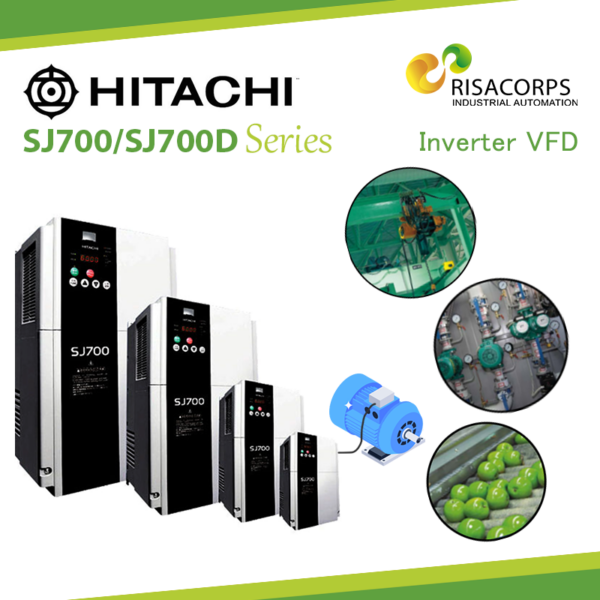

Hitachi Inverter VFD SJ700/SJ700D Series
