Panasonic HMI GT707 Series

GT707 Touch Terminal

  • 7 inch TFT display
  • Wide screen, small body
  • Area available for display: 153.5 x 85.6mm
  • Body dimensions nearly the same as those of a 5.7 inch touch panel
  • 65536 colors
  • LC display equipped with long-life LED backlight
  • IP65
  • SD memory card slot
  • Clock/calendar function

GT707.pdf

0 People watching this product now!
Deskripsi

Deskripsi



GT707 – progressing towards a new dimension

The first 7-inch touch panel which fits into the panel cut-out of a 5.7 inch touch panel. This way, the extremely user-friendly touch panel provides more display space while maintaining a slim design.

TFT color screen for excellent life-like images

High-resolution TFT color screen with 65536 colors and a long-life white LED backlight. The comfortable wide-screen LCD (800 x 480 pixels) displays images in high contrast without distracting dots or lines.
The new GT model offers 16 times more colors and a resolution that is 5 times higher than that of the GT32T-R, for example.

Status monitor

The GT707 offers an easy way to check the status of all connected devices at one glance. The device monitor lets you see the status of a PLC, for example. No need for a computer. Simply start the device monitor from the system menu. No need for manual programming.

Transfer of program data

PLC and GTWIN project data can easily be transferred via SD/SDHC memory card: Simply load them from the PLC or the GT touch panel and save them back again.

GT707 specification

Produk Terkait

Placeholder

AH1 (FJ) Switches

, ,
TYPICAL APPLICATIONS • Electric pot • Automobiles (Detection of key position), etc   Download For Specification
Quick view
FP0R Series

Panasonic FP0R Series

, ,

Ultracompact dengan fungsionalitas lebih

FP0R adalah standar baru untuk PLC kompak yang menawarkan fungsionalitas yang ditingkatkan dan kinerja yang optimal. Karena desainnya yang sangat ringkas, Panasonic FP0R sangat cocok untuk kabinet sakelar kecil dan lokasi lain dengan ruang terbatas. Hingga empat sumbu dapat diposisikan tanpa unit ekspansi, dan port USB TOOL memastikan transfer program yang sederhana dan cepat. FP0R meyakinkan dalam menuntut lingkungan seperti aplikasi pelabelan. icon pdf Katalog Panasonic FP0R Series

icon pdf Katalog Panasonic FP0R Analog Series

icon pdf Katalog Panasonic FP Series Lineup

Quick view

Panasonic HMI GT02 Series

, ,

GT02 series

The GT02 offers a host of innovative functions and is also pleasing to the eye. The brilliant 3.8'' graphical touch display is illuminated by a maintenance-free 3-color LED backlight which comes in 2 variations: green/orange/red and white/pink/red. The first SD memory card slot in the three-inch class allows for easy screen data transfer, data logging and storage. A variety of other needs from manufacturing sites were also covered, including the connector location for efficient wiring, improved environmental resistance rated IP67, and a newly designed bracket for more secure fastening. You can choose between 12 different models, which differ in:
  • communication interface (RS232C or RS422/RS485),
  • housing (pure black or hairline silver),
  • power supply (5V or 24V DC) and
  • SD memory card slot (with or without).

Key features

  • 3.8'' STN monochrome display
  • Resolution: 240x96 dots
  • Degree of protection: IP67
  • Mini USB interface
  • SD/SDHC memory card slot for cards up to 32GB, class10 max. (GT02MQ2/GQ2)
  • Dimensions: 112x74x27mm
  • Graph, recipe and flow display functions
  • Through function for simultaneous debugging of the GT and PLC
  • GT link function - up to 32 Panasonic HMIs can be connected to one PLC
  • Multiple PLCs - up to 31 Panasonic PLCs can be connected to one HMI
  • Data logging function
  • Isolated power supply for enhanced reliability
GT02 Datasheet.pdf
Quick view
Sold out
Placeholder

Panasonic KT9 PID Temperature Controller, 96 x 96mm, 1 Output Relay, 100 → 240 V ac Supply Voltage

, , ,
Professional range of Digital Temperature Controllers to suit a wide variety of applications. Flush mount controller with membrane sheet keys. Dual LED display to determine the actual & reference values at a glance. Panasonic KT series provide an energy efficient solution without compromising on performance. Optional free software available from Panasonic to allow parameters to be set from a computer, along with data logging / monitoring facilities. This Temperature Controller software can be accessed via link in the datasheet Download for specification
Quick view
Panasonic MK300 Series

PANASONIC MK300-Series Compact Inverter

, , ,
Accurate control based on perfect function Katalog Panasonic MK300 Series
Quick view

PANASONIC Motor Induction 1 Phase Series

,
Features :
  • It is fitted for continuous running in one direction.
  • Continuous time rating.
  • The motor with national specifications is of heatproof class 120 (E); the motor with specifications compliant with overseas standards is of heatproof 130 (B).
  • Because it is a capacitor-type induction motor, it has a high power factor and runs with a low noise level.
Note 1) The induction motor cannot make a quick-reversal run because of the torque acting in the opposite direction. Therefore stop the induction motor once, change the wire connections and make a reverse run. Note 2) Induction Motor start-stop operation must not exceed 6-cycles per minute or demage may occur. DOWNLOAD PDF FOR SPECIFICATION
Quick view

PANASONIC Powerful compact PLC: FPΣ

, , ,

FP-Σ

The FP-Sigma features the very latest control technology and a compact structural design. It is able to communicate with all major factory automation products. Of course you can program the FP-Sigma using our FPWIN Pro software (conforming to IEC 61131-3), and it is compatible with all Panasonic controllers. Other highlights:
  • Large program memory (32k commands)
  • Large data memory (32k words)
  • Efficient motion control functions - 50kHz fast counter input - 100kHz pulse output - convenient positioning commands
  • Fastest processing time, 0.32µs/basic command
  • Real-time clock
  • Compact design (W 30 x H 90 x D 60mm)
  • Top communication performance thanks to 3 possible serial interfaces on the CPU
  • MODBUS RTU Master/Slave standard in all CPUs
Download for user manual.
Quick view
Placeholder

SERVO MOTOR PANASONIC MSMD042P1U / MHMD042P1U – 400W

,
  MSMD042P1U / MHMD042P1U - 400W
Quick view
Sold out
Placeholder

TH13/TH23 Hour Meters

, , ,

Features

1.High-performance compact synchronous motor

2.Compact and stylish

3.Flat terminals for easy wiring

To weld the #187 flat connection terminals (receptacles), please use a "YC-051" tool manufactured by J.S.T. Mfg. Co. Ltd.

4. Rotary indicator (Clockwise, one rotation per 2 minutes)

Typical applications

  • Machine tools, automated machines, control panels
  • Forming machines, medical equipment, generators, compressors
  • Water treatment facilities, presses
  • Motors, etc.
Download For Specification
Quick view

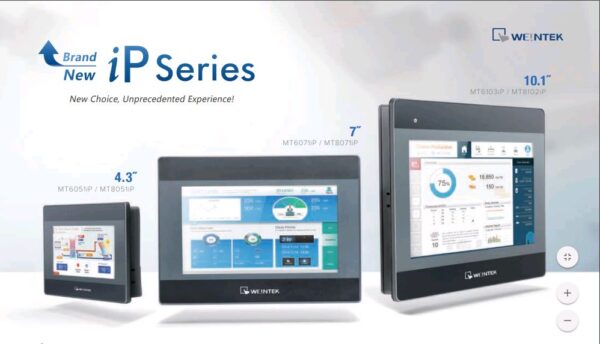

WEINTEK iP-Series

, , ,
