Deskripsi

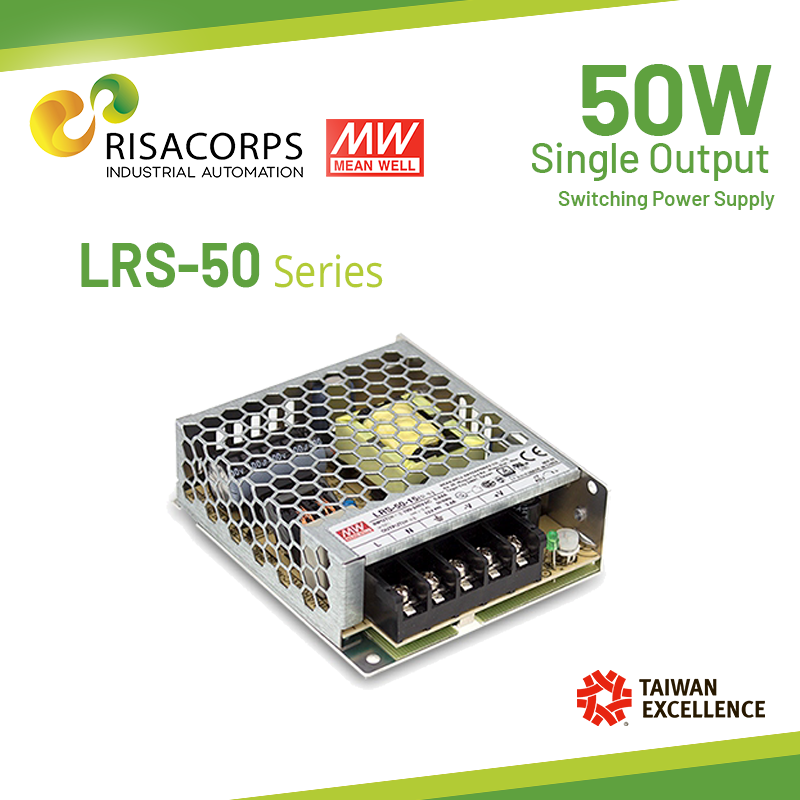

MEAN WELL Seri LRS-50 adalah power supply 50w tipe single output enclosed dengan desain profil rendah 30mm. Mengadopsi input 85 ~ 264VAC jangkauan penuh, seluruh seri menyediakan saluran tegangan output 3.3V, 5V, 12V, 15V, 24V, 36V dan 48V.
Selain efisiensi tinggi hingga 90%, desain kotak jaring logam mampu meningkatkan pembuangan panas LRS-50, sehingga seluruh seri beroperasi dari -30℃ hingga 70℃ di bawah konveksi udara tanpa kipas.
MEAN LRS-50 mengkonsumsi daya tanpa beban yang sangat rendah (kurang dari 0,2W), hal ini memungkinkan sistem akhir dengan mudah guna memenuhi kebutuhan energi di seluruh dunia.
LRS-50 memiliki fungsi perlindungan yang lengkap dan kemampuan anti-getaran 5G; itu mematuhi peraturan keselamatan internasional seperti TUV BS EN/EN62368-1, BS EN/EN60335-1,BS EN/EN61558-1/-2-16, UL62368-1 dan GB4943. Seri LRS-50 berfungsi sebagai solusi catu daya dengan harga sesuai kinerja tinggi untuk berbagai aplikasi industri.
Fitur
‧Input AC universal / Jangkauan penuh
‧Tahan masukan lonjakan 300VAC selama 5 detik
‧Konsumsi daya tanpa beban<0,3W
‧Ukuran miniatur dan profil rendah 1U
‧Suhu pengoperasian tinggi hingga 70℃
‧Perlindungan: Hubungan pendek / Kelebihan beban / Tegangan berlebih
‧Pendinginan dengan konveksi udara bebas
‧Kepatuhan terhadap IEC/BS EN/EN 60335-1(PD3) dan
IEC/BS EN/EN61558-1, -2-16 untuk peralatan rumah tangga
‧Ketinggian pengoperasian hingga 5000 meter (Catatan.8)
‧Tahan uji getaran 5G
‧Efisiensi tinggi, umur panjang dan keandalan yang tinggi
‧Indikator LED untuk menyalakan
‧Kategori tegangan berlebih Ⅲ
‧100% uji burn-in beban penuh
Spesifikasi
|
MODEL |
LRS-50-3.3 |
LRS-50-5 |
LRS-50-12 |
LRS-50-15 |
LRS-50-24 |
LRS-50-36 |
LRS-50-48 |
|
|
OUTPUT |
DC VOLTAGE |
3.3V |
5V |
12V |
15V |
24V |
36V |
48V |
|
RATED CURRENT |
10A |
10A |
4.2A |
3.4A |
2.2A |
1.45A |
1.1A |
|
|
CURRENT RANGE |
0 ~ 10A |
0 ~ 10A |
0 ~ 4.2A |
0 ~ 3.4A |
0 ~ 2.2A |
0 ~ 1.45A |
0 ~ 1.1A |
|
|
RATED POWER |
33W |
50W |
50.4W |
51W |
52.8W |
52.2W |
52.8W |
|
|
RIPPLE & NOISE (max.) Note.2 |
80mVp-p |
80mVp-p |
120mVp-p |
120mVp-p |
150mVp-p |
200mVp-p |
200mVp-p |
|
|
VOLTAGE ADJ. RANGE |
2.97 ~ 3.6V |
4.5 ~ 5.5V |
10.2 ~ 13.8V |
13.5 ~ 18V |
21.6 ~ 28.8V |
32.4 ~ 39.6V |
43.2 ~ 52.8V |
|
|
VOLTAGE TOLERANCE Note.3 |
±3.0% |
±2.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
|
|
LINE REGULATION Note.4 |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
|
LOAD REGULATION Note.5 |
±2.0% |
±1.0% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
|
SETUP, RISE TIME |
1000ms, 30ms/230VAC 2000ms,30ms/115VAC at full load |
|||||||
|
HOLD UP TIME (Typ.) |
30ms/230VAC 12ms/115VAC at full load |
|||||||
|
INPUT |
VOLTAGE RANGE |
85 ~ 264VAC 120 ~ 373VDC |
||||||
|
FREQUENCY RANGE |
47 ~ 63Hz |
|||||||
|
EFFICIENCY (Typ.) |
80% |
83% |
86% |
88% |
88% |
89% |
90% |
|
|
AC CURRENT (Typ.) |
0.95A/115VAC 0.56A/230VAC |
|||||||
|
INRUSH CURRENT (Typ.) |
COLD START 45A/230VAC |
|||||||
|
LEAKAGE CURRENT |
<0.75mA / 240VAC |
|||||||
|
PROTECTION |
OVER LOAD |
110 ~ 150% rated output power |
||||||
|
Protection type : Hiccup mode, recovers automatically after fault condition is removed |
||||||||
|
OVER VOLTAGE |
3.8 ~ 4.45V |
5.9~ 7.3V |
13.8 ~ 17.2V |
18.75 ~ 25.75V |
28.8 ~ 36.6V |
41.4 ~ 51.6V |
55.2 ~ 67.8V |
|
|
Protection type : Shut down o/p voltage, re-power on to recover |
||||||||
|
ENVIRONMENT |
WORKING TEMP. |
-30 ~ +70℃ (Refer to “Derating Curve”) |
||||||
|
WORKING HUMIDITY |
20 ~ 90% RH non-condensing |
|||||||
|
STORAGE TEMP., HUMIDITY |
-40 ~ +85℃, 10 ~ 95% RH non-condensing |
|||||||
|
TEMP. COEFFICIENT |
±0.03%/℃ (0 ~ 50℃) |
|||||||
|
VIBRATION |
10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes |
|||||||
|
OVER VOLTAGE CATEGORY |
Ⅲ; Compliance to BS EN/EN61558, BS EN/EN50178, BS EN/EN60664-1, BS EN/EN62477-1; altitude up to 2000 meters |
|||||||
|
SAFETY & EMC (Note 9) |
SAFETY STANDARDS |
UL62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2–16,CCC GB4943.1, BSMI CNS15598-1, EAC TP TC 004, AS/NZS 60950.1(by CB),KC K60950-1(for LRS-50-12/24 only), BIS IS13252(Part1): 2010/IEC 60950-1: 2005(except for LRS-50-48) approved |
||||||
|
WITHSTAND VOLTAGE |
I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC |
|||||||
|
ISOLATION RESISTANCE |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH |
|||||||
|
EMC EMISSION |
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN55014, BS EN/EN61000-3-2,-3, GB/T 9254, BSMI CNS15936, EAC TP TC 020,KC KN32,KN35(for LRS-50-12/24 only) |
|||||||
|
EMC IMMUNITY |
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61000-6-2 (BS EN/EN50082-2),BS EN/EN55035, heavy industry level, EAC TP TC 020,KC KN32,KN35(for LRS-50-12/24 only) |
|||||||
|
OTHERS |
MTBF |
3149.8K hrs min. Telcordia SR-332 (Bellcore) ; 561.6Khrs min. MIL-HDBK-217F (25℃) |
||||||
|
DIMENSION |
99*82*30mm (L*W*H) |
|||||||
|
PACKING |
0.23Kg; 60pcs/14.8Kg/0.88CUFT |
|||||||
|
NOTE |
mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to EMI testing of component power supplies. (as available on http://www.meanwell.com) ※ Product Liability Disclaimer：For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx |
|||||||
