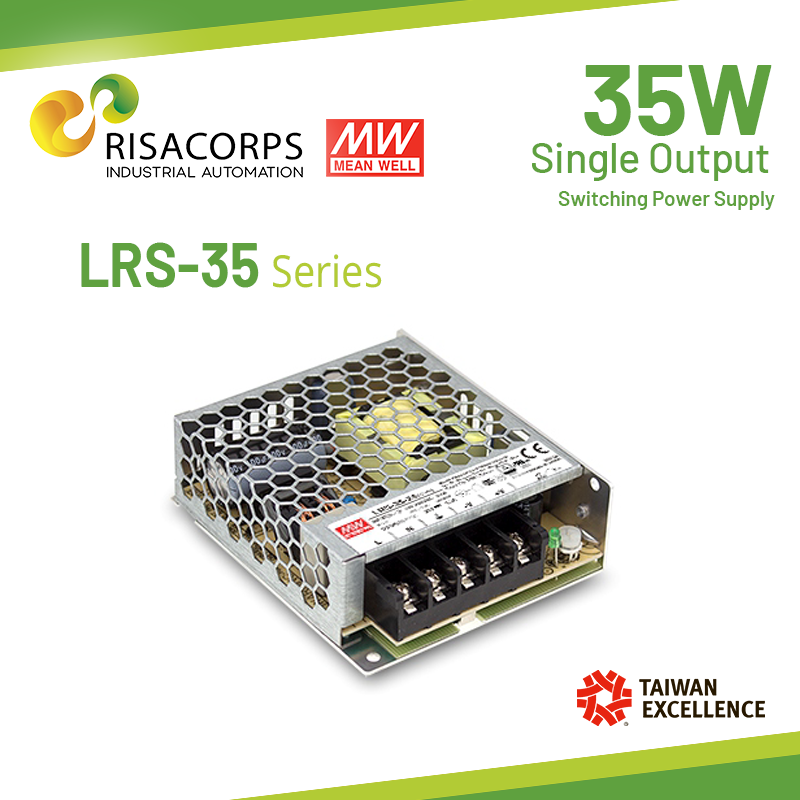

MEAN WELL LRS-35 Series
Distributor Resmi
Produk Baru & Original
Cocok diaplikasikan pada:
‧Mesin otomasi industri
‧Sistem kontrol industri
‧Peralatan mekanik dan listrik
‧ Instrumen, peralatan, atau peralatan elektronik
‧Peralatan rumah tangga
SERVICE EXCELLENT
Gratis Konsultasi
Kami bantu temukan kebutuhan Anda
Bantuan Teknis
Layanan pemasangan hingga beroperasi
Panel
Panel manual / otomatis
Proyek
Distribusi Suku Cadang dan layanan proyek.
Layanan Pengiriman
melayani seluruh indonesia
Deskripsi
Seri LRS-35 adalah power supply 35W tipe single-output enclosed dengan desain profil rendah 30mm. Mengadopsi input 85~264VAC jangkauan penuh, seluruh seri menyediakan saluran tegangan output 5V, 12V, 15V, 24V, 36V, dan 48V.
Selain efisiensi tinggi hingga 89%, desain kotak jaring logam meningkatkan pembuangan panas LRS-35 sehingga seluruh seri beroperasi dari -30℃ hingga 70℃ di bawah konveksi udara tanpa kipas.
Menghadirkan konsumsi daya tanpa beban yang sangat rendah (kurang dari 0,2W), hal ini memungkinkan sistem akhir dengan mudah memenuhi kebutuhan energi di seluruh dunia. LRS-35 memiliki fungsi perlindungan lengkap dan kemampuan anti-getaran 5G; itu mematuhi peraturan keselamatan internasional seperti TUV BS EN/EN62368-1, BS EN/EN60335-1,BS EN/EN61558-1/-2-16, UL62368-1 dan GB4943. Seri LRS-35 berfungsi sebagai solusi catu daya dengan harga sesuai kinerja tinggi untuk berbagai aplikasi industri.
Fitur
‧ Input AC universal / Jangkauan penuh
‧ Menahan input lonjakan 300VAC selama 5 detik
‧ Tidak ada konsumsi daya beban<0.2W
‧ Ukuran miniatur dan profil rendah 1U
‧ Suhu pengoperasian tinggi hingga 70°C
‧ Perlindungan: Korsleting / Kelebihan beban / Tegangan berlebih
‧ Pendinginan dengan konveksi udara bebas
‧ Kepatuhan terhadap IEC/BS EN/EN 60335-1(PD3) dan IEC/BS EN/EN61558-1, -2-16 untuk peralatan rumah tangga
‧ Ketinggian operasi hingga 5000 meter (Catatan.8)
‧ Tahan uji getaran 5G
‧ Efisiensi tinggi, umur panjang, dan keandalan tinggi
‧ LED indikator
Spesifikasi
|
MODEL |
LRS-35-5 |
LRS-35-12 |
LRS-35-15 |
LRS-35-24 |
LRS-35-36 |
LRS-35-48 |
|
|
OUTPUT |
DC VOLTAGE |
5V |
12V |
15V |
24V |
36V |
48V |
|
RATED CURRENT |
7A |
3A |
2.4A |
1.5A |
1A |
0.8A |
|
|
CURRENT RANGE |
0 ~ 7A |
0 ~ 3A |
0 ~ 2.4A |
0 ~ 1.5A |
0 ~ 1A |
0 ~ 0.8A |
|
|
RATED POWER |
35W |
36W |
36W |
36W |
36W |
38.4W |
|
|
RIPPLE & NOISE (max.) Note.2 |
80mVp-p |
120mVp-p |
120mVp-p |
150mVp-p |
200mVp-p |
200mVp-p |
|
|
VOLTAGE ADJ. RANGE |
4.5 ~ 5.5V |
10.2 ~ 13.8V |
13.5 ~ 18V |
21.6 ~ 28.8V |
32.4 ~ 39.6V |
43.2 ~ 52.8V |
|
|
VOLTAGE TOLERANCE Note.3 |
±2.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
|
|
LINE REGULATION Note.4 |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
|
LOAD REGULATION Note.5 |
±1.0% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
|
SETUP, RISE TIME |
1000ms, 30ms/230VAC 2000ms,30ms/115VAC at full load |
||||||
|
HOLD UP TIME (Typ.) |
30ms/230VAC 12ms/115VAC at full load |
||||||
|
INPUT |
VOLTAGE RANGE |
85 ~ 264VAC 120 ~ 373VDC |
|||||
|
FREQUENCY RANGE |
47 ~ 63Hz |
||||||
|
EFFICIENCY (Typ.) |
82% |
86% |
86% |
88% |
88% |
89% |
|
|
AC CURRENT (Typ.) |
0.7A/115VAC 0.42A/230VAC |
||||||
|
INRUSH CURRENT (Typ.) |
COLD START 45A/230VAC |
||||||
|
LEAKAGE CURRENT |
<0.75mA / 240VAC |
||||||
|
PROTECTION |
OVER LOAD |
110 ~ 150% rated output power |
|||||
|
Protection type : Hiccup mode, recovers automatically after fault condition is removed |
|||||||
|
OVER VOLTAGE |
5.75 ~ 6.9V |
13.8 ~ 16.2V |
18.75 ~ 21.75V |
28.8 ~ 33.6V |
41.4 ~ 48.6V |
55.2 ~ 64.8V |
|
|
Protection type : Shut down o/p voltage, re-power on to recover |
|||||||
|
ENVIRONMENT |
WORKING TEMP. |
-30 ~ +70℃ (Refer to “Derating Curve”) |
|||||
|
WORKING HUMIDITY |
20 ~ 90% RH non-condensing |
||||||
|
STORAGE TEMP., HUMIDITY |
-40 ~ +85℃, 10 ~ 95% RH non-condensing |
||||||
|
TEMP. COEFFICIENT |
±0.03%/℃ (0 ~ 50℃) |
||||||
|
VIBRATION |
10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes |
||||||
|
OVER VOLTAGE CATEGORY |
Ⅲ; According to BS EN/EN61558, BS EN/EN50178, BS EN/EN60664-1, BS EN/EN62477-1; altitude up to 2000 meters |
||||||
|
SAFETY & EMC (Note 9) |
SAFETY STANDARDS |
UL62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2–16,CCC GB4943.1, BSMI CNS15598-1, EAC TP TC 004,AS/NZS 60950.1(by CB),KC K60950-1(for LRS-35-12/24 only), BIS IS13252(Part1): 2010/IEC 60950-1: 2005(except for LRS-35-48) approved |
|||||
|
WITHSTAND VOLTAGE |
I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC |
||||||
|
ISOLATION RESISTANCE |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH |
||||||
|
EMC EMISSION |
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN55014, BS EN/EN61000-3-2,-3, GB/T 9254, BSMI CNS15936, EAC TP TC 020,KC KN32,KN35(for LRS-35-12/24 only) |
||||||
|
EMC IMMUNITY |
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61000-6-2 (BS EN/EN50082-2), BS EN/EN55035, heavy industry level, EAC TP TC 020,KC KN32,KN35(for LRS-35-12/24 only) |
||||||
|
OTHERS |
MTBF |
3201.5K hrs min. Telcordia SR-332 (Bellcore) ; 655.5Khrs min. MIL-HDBK-217F (25℃) |
|||||
|
DIMENSION |
99*82*30mm (L*W*H) |
||||||
|
PACKING |
0.23Kg ; 60pcs/14.8Kg/0.88CUFT |
||||||
|
NOTE |
(as available on http://www.meanwell.com) ※ Product Liability Disclaimer：For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx |
||||||
| Brand | MEAN WELL |
|---|
