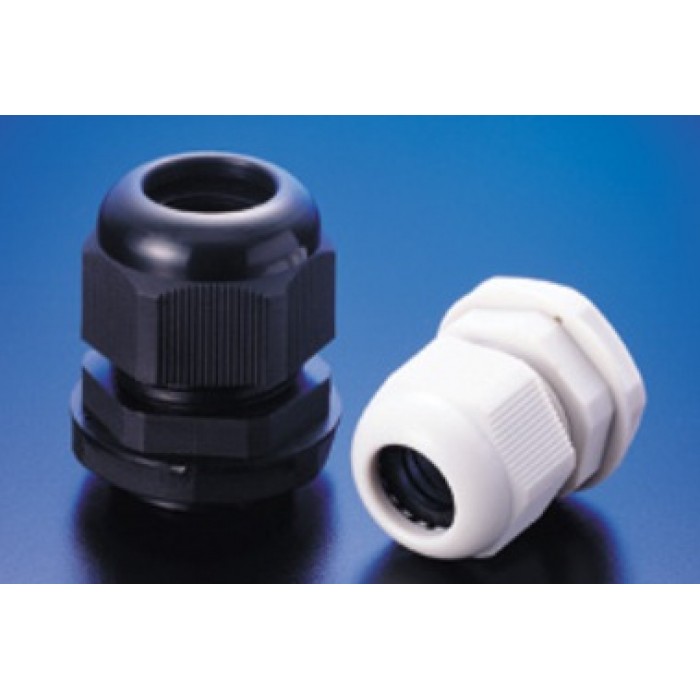

KSS Nylon Cable Gland – PG Thread W/O Washer IP68

  • Material : UL approved Nylon 66, 94V-2
  • Color : Black, available in other colors
  • Suit a variety of applications, and diverse industries
  • Function : Mount gland to pre-drilled panel hole, use locknut to fix gland on board, insert the cables in the seal, and then tighten up the nut to hold cables in position
  • Feature : Simply and quickly fixed high degree of the protection IP68 preventing dust and water
  • Available to order the accessories separately. Follow the drawing and add the letter to the suffix part number, L for locknut, W for washer, B for gland body, S for seal, N for nut.
    *For example, EGL-7 if you would like to only order locnut for PG7

Type

EG-7 BLACK

,

EG-9

,

EG-11

,

EG-13.5

,

EG-16

,

EG-21

,

EG-29

,

EG-29 WHITE

,

EG-36

,

EG-36 BLACK

Category

Nylon Cable Gland – PG Thread W/O Washer IP68

0 People watching this product now!
Deskripsi

Deskripsi

KSS NYLON CABLE GLAND

TypeOld / Alternative TypeCable RangeQty/Bag
EG-7 BLACK PG-7 BLACK3.5mm – 6mm50
EG-9 PG-164mm – 8mm50
EG-11 PG-115mm – 10mm50
EG-13,5 PG-13.56mm – 12mm50
EG-16 PG-1610mm – 14mm50
EG-21 PG-2113mm – 18mm50
EG-29 PG-2918mm – 25mm25
EG-29 WHITE PG-29 WHITE18mm – 25mm10
EG-36 PG-3622mm – 32mm10
EG-36 BLACK PG-36 BLACK22mm – 32mm10
