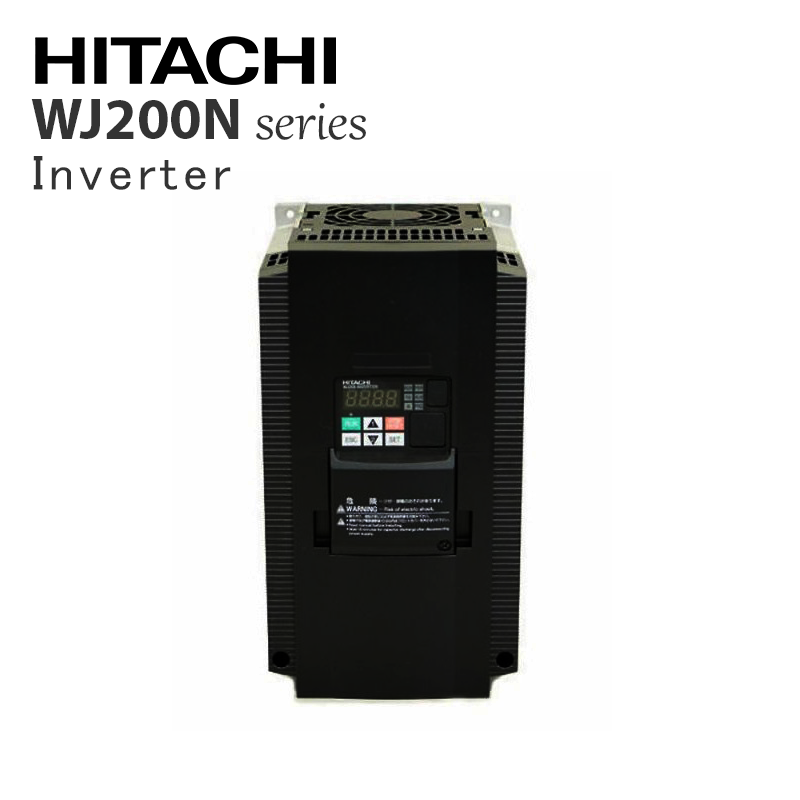

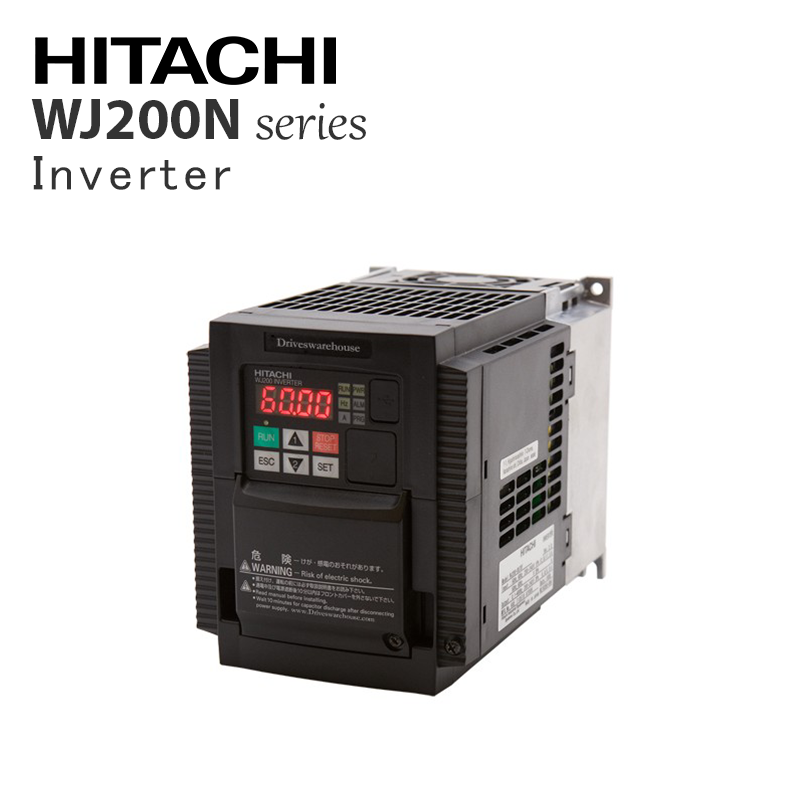

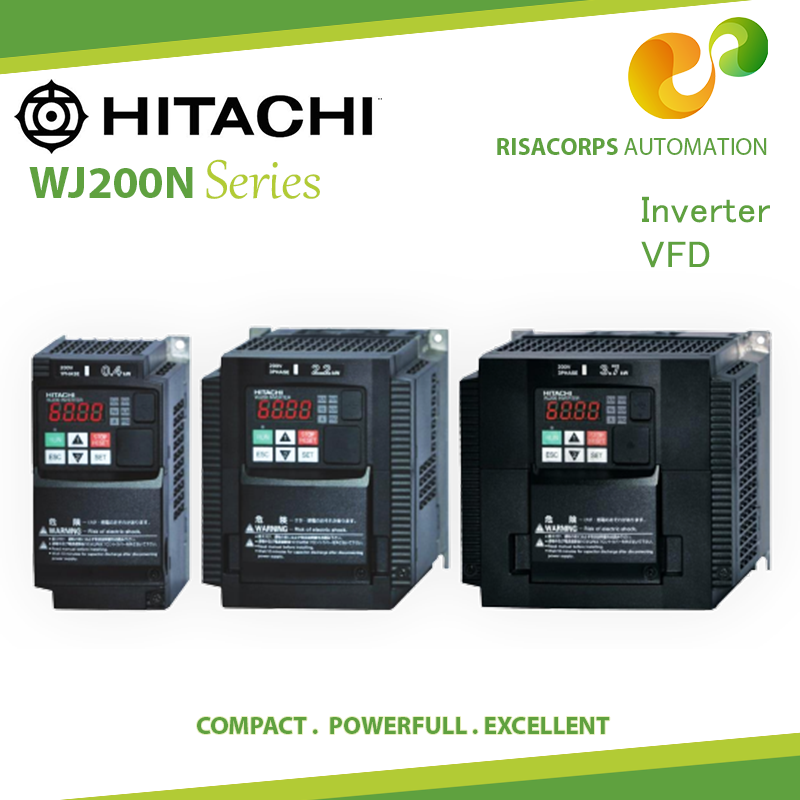

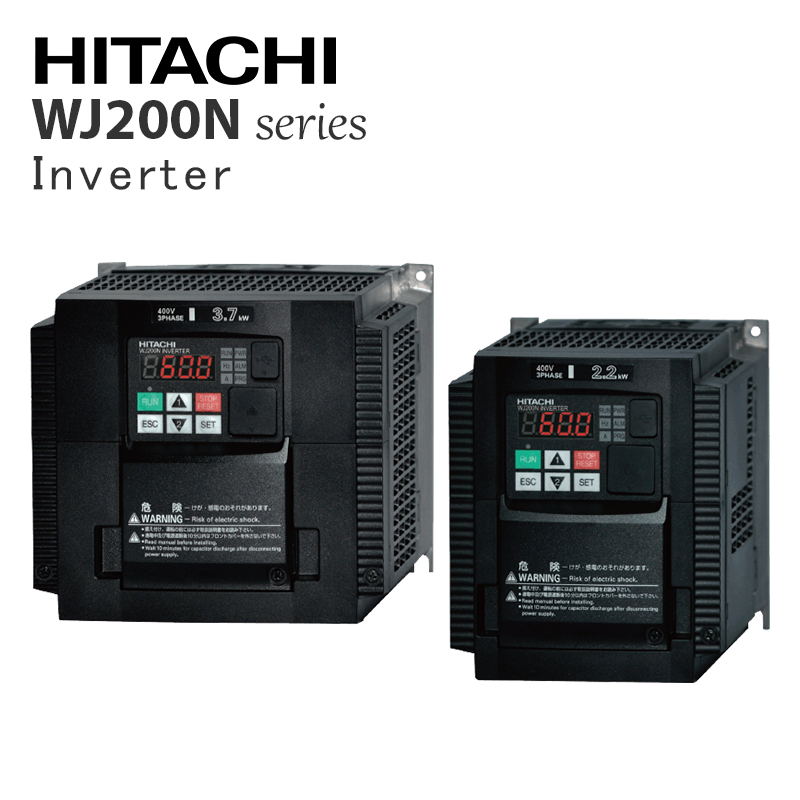

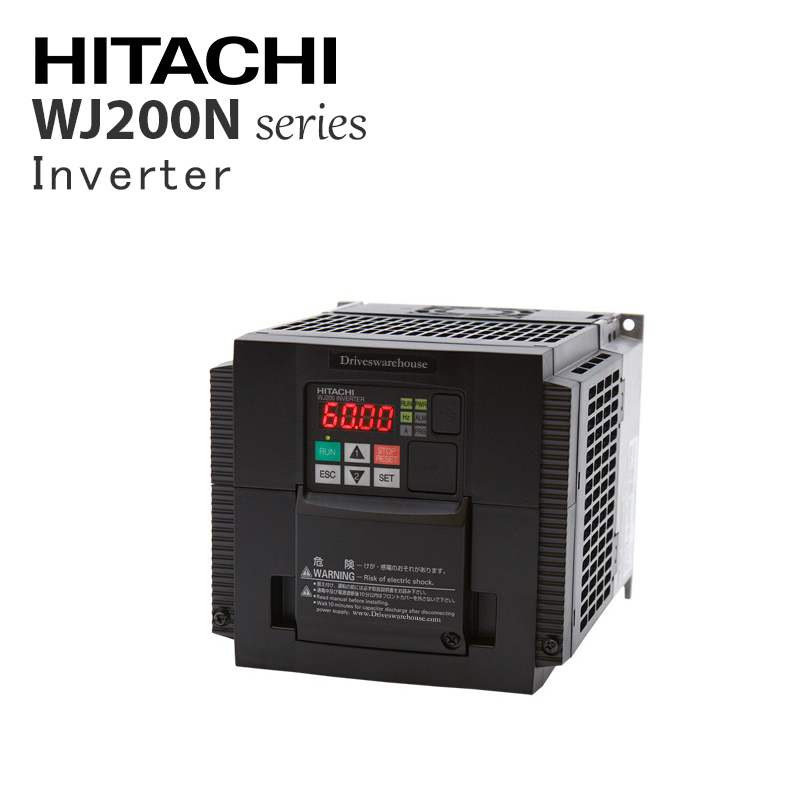

Hitachi Inverter VFD WJ200/N Series
Superior Control Performance & Network
Inverter Hitachi WJ200/N adalah inverter VFD dengan Dual rating untuk aplikasi VT/CT .Mampu menggerakkan motor IM/PM dengan sirkuit pengereman terintegrasi.
Control System | sine-wave PWM control |
---|---|
Output frequency range | 0.10~400.00Hz |

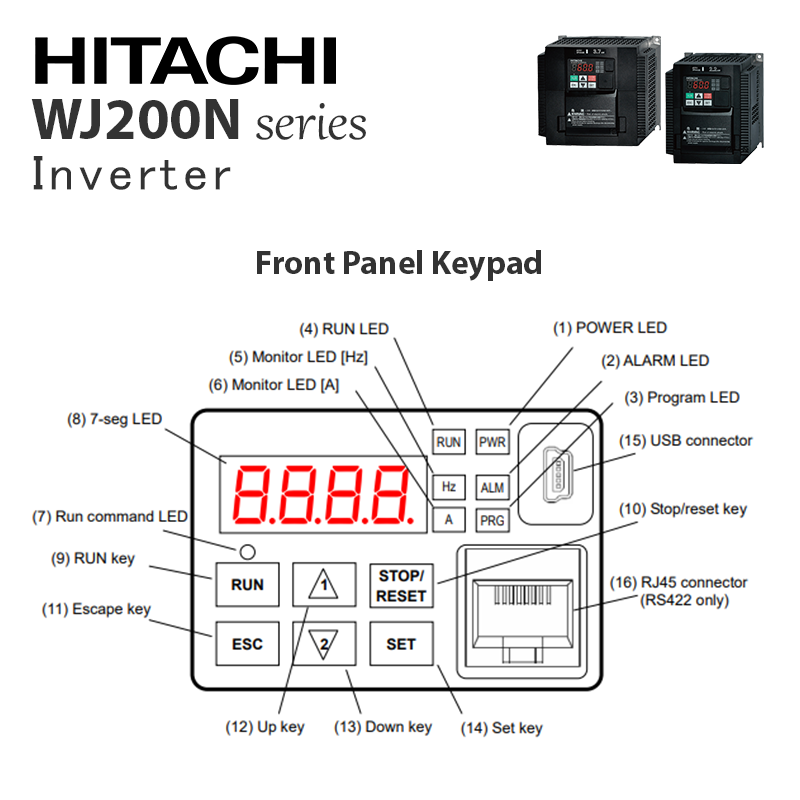

Digital operator | 4-digit 7-segment LED、 7 signal LED、6 operating keys |
External Port | RS422 ,RS485 ,USB ,Optional Board |
Protection degree | Structure:IP20 |
Brand | Hitachi |
0 People watching this product now!
Deskripsi
Deskripsi
Inverter Hitachi WJ200/N Series
Fitur & Manfaat
- Torsi awal yang tinggi & stabilitas kecepatan yang ditingkatkan secara dratis dengan sensorless vector control yang canggih.
- Mengurangi Wave velocity ketika dioperasikan pada 0.5 HZ
- Identifikasi parameter dari permanent magnet motor synchronous & motor asynchronous secara otomatis dan beralih di antara dua aplikasi ini
- Fungsi Quick Stop, berhenti dengan cepat denga fungsi over excitation bahkan tanpa unit pengereman
- Fungsi Emergency Stop dapat mematikan output inverter melalui hardware circuit
- Perlambatan berhenti saat daya mati
- Fungsi penekan arus lebih / tegangan lebih berkontribusi pada operasi yang stabil & konstan
- Operasi urutan melalui pengunduhan ke inverter program yang dibuat dengan EzSQ (Easy Sequence)
- Pertukaran data antara inverter yang berbeda (Maksimum 5 Inverter), sinkronisasikan operasi pada konveyor, multi pump control
- Tidak Ada Penurunan saat suhu sekitar di bawah 40*C
- Penggantian kipas pendingin yang mudah
- Dibangun di 2 pulse string input circuit, menghemat biaya untuk seluruh sistem
- Full Series built in braking units
- Tersedia password untuk menjaga parameter, melindungi dari mal-functions
- Perlindungan electronic heat yang fleksibel
- Tergabung dengan RS-485 Modbus RTU standar, dapat terhubung dengan jaringan terbuka seperti EtherCAT, CC-PROFINET (sedang dikembangkan).
- Fungsi Register Mapping memungkinkan Inverter Hitachi WJ200/N untuk berkomunikasi tanpa perlu mengubah program di komputer, sehingga lebih mudah untuk mengganti inverter
- Urutan transfer data Modbus-RTU dapat diatur untuk diterapkan pada protokol komunikasi PLC
[maxbutton id=”1″]
Tabel Inverter Hitachi WJ200N Series
No | Type | Description |
---|---|---|
1 | WJ200N-001LFU | Machinery Drive 0.1W/0.15HP , In: 3Ph 220V, Out: 3Ph 220V , w/O CE |
2 | WJ200N-001SFC | Machinery Drive 0.1kW/0.15HP , In: 1Ph 220V, Out: 3Ph 220V , w/O CE |
3 | WJ200N-002LFU | Machinery Drive 0.2W/0.25HP , In: 3Ph 220V, Out: 3Ph 220V , w/O CE |
4 | WJ200N-002SFC | Machinery Drive 0.2kW/0.25HP , In: 1Ph 220V, Out: 3Ph 220V , w/O CE |
5 | WJ200N-004HFC | Machinery Drive 0.4kW/0.5HP , In: 3Ph 380V, Out: 3Ph 380V , w/O CE |
6 | WJ200N-004LFU | Machinery Drive 0.4W/0.5HP , In: 3Ph 220V, Out: 3Ph 220V , w/O CE |
7 | WJ200N-004SFC | Machinery Drive 0.4kW/0.5HP , In: 1Ph 220V, Out: 3Ph 220V , w/O CE |
8 | WJ200N-007HFC | Machinery Drive 0.75kW/1HP , In: 3Ph 380V, Out: 3Ph 380V , w/O CE |
9 | WJ200N-007LFU | Machinery Drive 0.75W/1HP , In: 3Ph 220V, Out: 3Ph 220V , w/O CE |
10 | WJ200N-007SFC | Machinery Drive 0.75kW/1HP , In: 1Ph 220V, Out: 3Ph 220V , w/O CE |
11 | WJ200N-015HFC | Machinery Drive 1.5kW/2HP , In: 3Ph 380V, Out: 3Ph 380V , w/O CE |
12 | WJ200N-015LFU | Machinery Drive 1.5W/2HP , In: 3Ph 220V, Out: 3Ph 220V , w/O CE |
13 | WJ200N-015SFC | Machinery Drive 1.5kW/2HP , In: 1Ph 220V, Out: 3Ph 220V , w/O CE |
14 | WJ200N-022HFC | Machinery Drive 2.2kW/3HP , In: 3Ph 380V, Out: 3Ph 380V , w/O CE |
15 | WJ200N-022LFU | Machinery Drive 2.2kW/3HP , In: 3Ph 380V, Out: 3Ph 380V , w/O CE |
16 | WJ200N-022SFC | Machinery Drive 2.2kW/3HP , In: 1Ph 220V, Out: 3Ph 220V , w/O CE |
17 | WJ200N-037LFU | Machinery Drive 3.7kW/5HP , In: 3Ph 220V, Out: 3Ph 220V , w/O CE |
18 | WJ200N-040HFC | Machinery Drive 4kW/5.5HP , In: 3Ph 380V, Out: 3Ph 380V , w/O CE |
19 | WJ200N-055HFC | Machinery Drive 5.5kW/7.5HP , In: 3Ph 380V, Out: 3Ph 380V , w/O CE |
20 | WJ200N-055LFU | Machinery Drive 5.5kW/7.5HP , In: 3Ph 220V, Out: 3Ph 220V , w/O CE |
21 | WJ200N-075HFC | Machinery Drive 7.5kW/10HP , In: 3Ph 380V, Out: 3Ph 380V , w/O CE |
22 | WJ200N-075LFU | Machinery Drive 7.5kW/10HP , In: 3Ph 220V, Out: 3Ph 220V , w/O CE |
23 | WJ200N-110HFC | Machinery Drive 11kW/15HP , In: 3Ph 380V, Out: 3Ph 380V , w/O CE |
24 | WJ200N-110LFU | Machinery Drive 11kW/15HP , In: 3Ph 220V, Out: 3Ph 220V , w/O CE |
25 | WJ200N-150HFC | Machinery Drive 15kW/20HP , In: 3Ph 380V, Out: 3Ph 380V , w/O CE |
26 | WJ200N-150LFU | Machinery Drive 15kW/20HP , In: 3Ph 220V, Out: 3Ph 220V , w/O CE |
27 | WJ200-004SFC | Machinery Drive 0.4kW/0.5HP , In: 1Ph 220V, Out: 3Ph 220V |
28 | WJ200-007HF | Machinery Drive 0.75kW/1HP , In: 3Ph 380V, Out: 3Ph 380V |
29 | WJ200-007HFC | Machinery Drive 0.75kW/1HP , In: 3Ph 380V, Out: 3Ph 380V |
30 | WJ200-007SF | Machinery Drive 0.75kW/1HP , In: 1Ph 220V, Out: 3Ph 220V |
31 | WJ200-007SFC | Machinery Drive 0.75kW/1HP , In: 1Ph 220V, Out: 3Ph 220V |
32 | WJ200-015HF | Machinery Drive 1.5kW/2HP , In: 3Ph 380V, Out: 3Ph 380V |
33 | WJ200-015HFC | Machinery Drive 1.5kW/2HP , In: 3Ph 380V, Out: 3Ph 380V |
34 | WJ200-015SF | Machinery Drive 1.5kW/2HP , In: 1Ph 220V, Out: 3Ph 220V |
35 | WJ200-015SFC | Machinery Drive 1.5kW/2HP , In: 1Ph 220V, Out: 3Ph 220V |
36 | WJ200-022HF | Machinery Drive 2.2kW/3HP , In: 3Ph 380V, Out: 3Ph 380V |
37 | WJ200-022HFC | Machinery Drive 2.2kW/3HP , In: 3Ph 380V, Out: 3Ph 380V |
38 | WJ200-022LFU | Machinery Drive 2.2kW/3HP , In: 3Ph 220V, Out: 3Ph 220V |
39 | WJ200-022SF | Machinery Drive 2.2kW/3HP , In: 1Ph 220V, Out: 3Ph 220V |
40 | WJ200-022SFC | Machinery Drive 2.2kW/3HP , In: 1Ph 220V, Out: 3Ph 220V |
41 | WJ200-037LF | Machinery Drive 3.7kW/5HP , In: 3Ph 220V, Out: 3Ph 220V |
42 | WJ200-037LFU | Machinary Drive 3.7kW/5HP , In: 3Ph 220V, Out: 3Ph 220V |
43 | WJ200-040HF | Machinery Drive 4kW/5.5HP , In: 3Ph 380V, Out: 3Ph 380V |
44 | WJ200-040HFC | Machinery Drive 4kW/5.5HP , In: 3Ph 380V, Out: 3Ph 380V |
45 | WJ200-055HF | Machinery Drive 5.5kW/7.5HP , In: 3Ph 380V, Out: 3Ph 380V |
46 | WJ200-055HFC | Machinery Drive 5.5kW/7.5HP , In: 3Ph 380V, Out: 3Ph 380V |
47 | WJ200-055LF | Machinery Drive 5.5kW/7.5HP , In: 3Ph 220V, Out: 3Ph 220V |
48 | WJ200-075HF | Machinery Drive 7.5kW/10HP , In: 3Ph 380V, Out: 3Ph 380V |
49 | WJ200-075HFC | Machinery Drive 7.5kW/10HP , In: 3Ph 380V, Out: 3Ph 380V |
50 | WJ200-075LF | Machinery Drive 7.5kW/10HP , In: 3Ph 220V, Out: 3Ph 220V |
51 | WJ200-110HF | Machinery Drive 11kW/15HP , In: 3Ph 380V, Out: 3Ph 380V |
52 | WJ200-110HFC | Machinery Drive 11kW/15HP , In: 3Ph 380V, Out: 3Ph 380V |
53 | WJ200-150HF | Machinery Drive 15kW/20HP , In: 3Ph 380V, Out: 3Ph 380V |
54 | WJ200-150HFC | Machinery Drive 15kW/20HP , In: 3Ph 380V, Out: 3Ph 380V |
Aplikasi
Inverter VFD Hitachi WJ200 dapat diaplikasikan pada:
Dalam kondisi beban berat seperti:
- Machine Tools
- Crane
- Electric Block
- Hoist
- Press
Dapat dipasang pada Fan Pump seperti:
- Water Supply
- Sewage drain
- Fountain
- Fan
- Air Condition System
Dapat dipasang pada packing di industri Food & Beverage:
- Packaging Machinery
- Slicing Machine
- Blender
- Fruit Sorting
Produk Terkait
ABB ACS180 Series
ABB machinery drives ACS180, 1/3 to 30 HP (0.25 to 22 kW) ABB ACS180 adalah penggerak mesin yang kompatibel, ideal untuk alat berat kompak.
penggerak mesin yang hemat biaya dan ringkas ini dioptimalkan untuk pembuat mesin yang memerlukan kemudahan penggunaan dan kinerja alat berat yang andal.
Katalog ABB ACS180 Indonesian
Flyer ABB ACS180

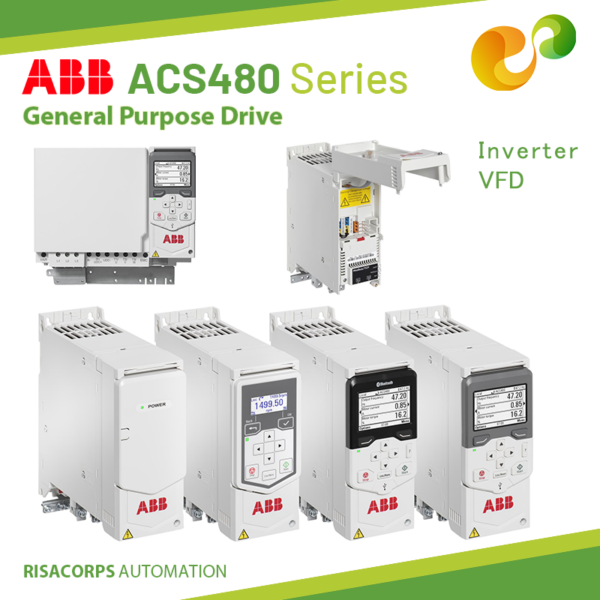

ABB ACS480 General purpose drive
