WEINTEK iP-Series
Brand:
Distributor Resmi
Produk Baru & Original
New iP Series
- Boasts excellent performance with better operation experience compared to its predecessor.
- Weintek’s compact HMI Series-iP has upgraded in every aspect to satisfy a variety of applications.
- Equipped with Cortex A8 600MHz CPU.
- Seamlessly upgraded from EB8000 to EasyBuilder Pro.
DOWNLOAD PDF FOR SPECIFICATION
0
People watching this product now!
SERVICE EXCELLENT
Gratis Konsultasi
Kami bantu temukan kebutuhan Anda
Bantuan Teknis
Layanan pemasangan hingga beroperasi
Panel
Panel manual / otomatis
Proyek
Distribusi Suku Cadang dan layanan proyek.
Layanan Pengiriman
melayani seluruh indonesia
Deskripsi

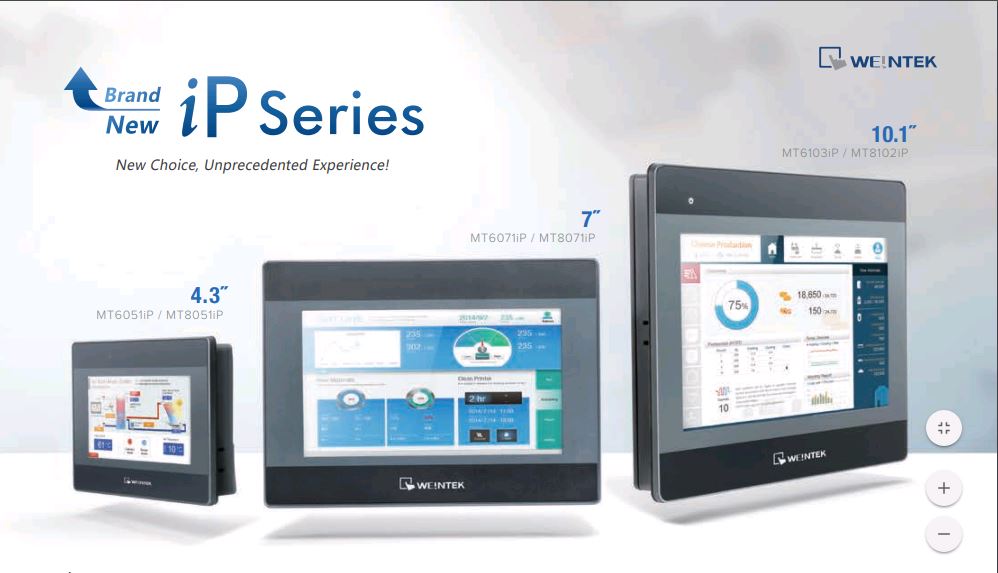

WEINTEK iP Series
| Specification | MT8071iP | MT6103iP | MT8102iP | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Display | Display | 7″ TFT | 10.1″ TFT | 10.1″ TFT | ||||||||||
| Resolution | 800 x 480 | 1024 x 600 | 1024 x 600 | |||||||||||
| Brigthness (cd/m²) | 300 | 400 | 350 | |||||||||||
| Contrast Ratio | 500:1 | 600:1 | 500:1 | |||||||||||
| Backlight Type | LED | LED | LED | |||||||||||
| Backlight Life Time | >30,000 hrs. | >25,000 hrs. | >20,000 hrs. | |||||||||||
| Colors | 16M | 16.2M | 16.7M | |||||||||||
| LCD Viewing Angle (T/B/L/R) | 70/50/70/70 | 60/60/70/70 | 60/60/70/70 | |||||||||||
| Touch Panel | Type | 4-wire Resistive Type | 4-wire Resistive Type | 4-wire Resistive Type | ||||||||||
| Accuracy | 4-wire Resistive Type | 4-wire Resistive Type | 4-wire Resistive Type | |||||||||||
| Memory | Flash | 128 MB | 128 MB | 128 MB | ||||||||||
| RAM | 128 MB | 128 MB | 128 MB | |||||||||||
| Processor | 32 bits RISC Cortex-A8 600MHz | 32 bits RISC Cortex-A8 600MHz | ARM RISC 528 MHz | |||||||||||
| I/O Ports | USB Host | USB 2.0 x 1 | USB 2.0 x 1 | USB 2.0 x 1 | ||||||||||
| USB Client | N/A | USB 2.0 x 1 (Micro USB) | N/A | |||||||||||
| Ethernet | 10/100 Base-T x 1 | N/A | 10/100 Base-T x 1 | |||||||||||
| COM Port | COM1:RS-232 COM2:RS-485 2W/4W |
COM1:RS-232 4W COM2:RS-485 2W/4W COM3:RS-232 2W/RS-485 2W”(1) |
Con.A:COM2 RS-485 2W/4W, COM3 RS-485 2W Con.B:COM1 RS-232 4W/COM3 RS-232 2W”(1) |
|||||||||||
| RTC | Built-in | Built-in | Built-in | |||||||||||
| Power | Input Power | 10.5~28VDC | 24±20%VDC | 10.5~28VDC | ||||||||||
| Power Isolation | Built-in | Built-in | Built-in | |||||||||||
| Power Consumption | 1A@12VDC;500mA@24VDC | 650mA@24VDC | 1.3A@12VDC;650mA@24VDC | |||||||||||
| Voltage Resistance | 500VAC (1 min.) | 500VAC (1 min.) | 500VAC (1 min.) | |||||||||||
| Isolation Resistance | Exceed 50MΩ at 500VDC | Exceed 50MΩ at 500VDC | Exceed 50MΩ at 500VDC | |||||||||||
| Vibration Endurance | 10 to 25Hz (X, Y, Z direction 2G 30 minutes) | 10 to 25Hz (X, Y, Z direction 2G 30 minutes) | 10 to 25Hz (X, Y, Z direction 2G 30 minutes) | |||||||||||
| Specification | PCB Coating | YES | N/A | N/A | ||||||||||
| Enclosure | Plastic | Plastic | Plastic | |||||||||||
| Dimensions WxHxD | 200.4 x 146.5 x 34mm | 271 x 213 x 36.4mm | 271 x 213 x 36.4mm | |||||||||||
| Panel Output | 192 x 138 mm | 260 x 202 mm | 260 x 202 mm | |||||||||||
| Weight | Approx. 0.52 kg | Approx. 1 kg | Approx. 1 kg | |||||||||||
| Mount | Panel Mount | Panel Mount | Panel Mount | |||||||||||
| Environment | Protecting Structure | NEMA4/IP65 Compliant Front Panel | NEMA4/IP65 Compliant Front Panel | NEMA4/IP65 Compliant Front Panel | ||||||||||
| Storage Temperature | -20°~60°C (-4°~140°F) | -20°~60°C (-4°~140°F) | -20°~60°C (-4°~140°F) | |||||||||||
| Operating Temperature | 0°~50°C (32°~122°F) | 0°~50°C (32°~122°F) | 0°~50°C (32°~122°F) | |||||||||||
| Relative Humidity | 10%~90% (non-condensing) | 10%~90% (non-condensing) | 10%~90% (non-condensing) | |||||||||||
| Certificate | CE | CE marked | CE marked | CE marked | ||||||||||
| UI | ||||||||||||||
| Software | EasyBuilder Pro | EasyBuilder Pro | EasyBuilder Pro | |||||||||||
Informasi Tambahan
| Type |
MT8071iP ,MT6103iP ,MT8102iP |
|---|---|
| Size |
7" ,10.1" |
| Brand |
WEINTEK |
