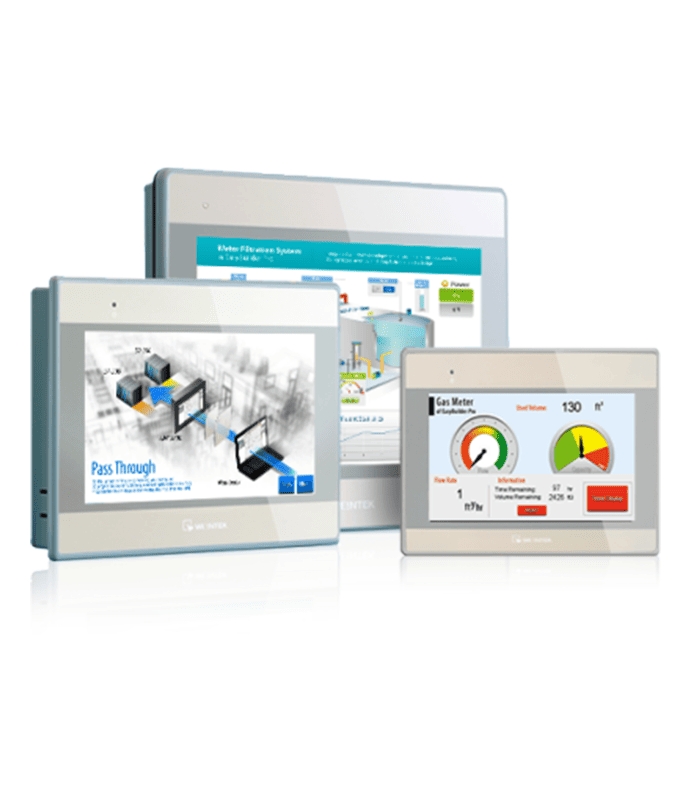

WEINTEK iE Series

Feature

Fan-less Cooling System
COM2 and COM3 RS-485 support MPI 187.5K, please use one at one time
PCB coating process ensures high reliability to resist from corrosion in harsh environment
Built-in Power Isolation
NEMA4 / IP65 Compliant Front Panel

DOWNLOAD PDF FOR SPECIFICATION

Type

MT-8071iE

MT-8102iE

Size

10.1"

0 People watching this product now!

Deskripsi

WEINTEK iE Series

Specification		MT8071iE	MT8102iE
Display	Display	7″ TFT	10.1″ TFT
	Resolution	800 x 480	1024 x 600
	Brigthness (cd/m²)	400	350
	Contrast Ratio	500:1	500:1
	Backlight Type	LED	LED
	Backlight Life Time	>30,000 hrs.	>50,000 hrs.
	Colors	16.7M	16.7M
Touch Panel	Type	4-wire Resistive Type	4-wire Resistive Type
Touch Panel	Accuracy	Active Area Length(X)±2%, Width(Y)±2%	4-wire Resistive Type
Memory	Flash	128 MB	128 MB
Memory	RAM	128 MB	128 MB
Processor		32 bits RISC Cortex-A8 600MHz	32 bits RISC Cortex-A8 600MHZ
I/O Ports	SB Card Slot	N/A	N/A
	USB Host	USB 2.0 x 1	USB 2.0 x 1
	USB Client	N/A	N/A
	Ethernet	10/100 Base-T x 1	10/100 Base-T x 1
	WiFi	N/A	N/A
	COM Port	COM1: RS-232 COM2: RS-485 2W/4W COM3: RS-485 2W	Con.A:COM2 RS-485 2W/4W, COM3 RS-485 2W Con.B:COM1 RS-232 4W/COM3 RS-232″(1)
	RS-485 Dual Isolation	N/A	N/A
	CAN Bus	N/A	N/A
	Audio Output	N/A	N/A
	Video Input	N/A	N/A
RTC		Built-in	Built-in
Power	Input Power	24±20%VDC	24±20%VDC
	Power Isolation	Built-in	Built-in
	Power Consumption	450mA@24VDC	650mA@24VDC
	Voltage Resistance	500VAC (1 min.)	500VAC (1 min.)
	Isolation Resistance	Exceed 50MΩ at 500VDC	Exceed 50MΩ at 500VDC
	Vibration Endurance	10 to 25Hz (X, Y, Z direction 2G 30 minutes)	10 to 25Hz (X, Y, Z direction 2G 30 minutes)
Specification	PCB Coating	YES	N/A
	Enclosure	Plastic	Plastic
	Dimensions WxHxD	200.3 x 146.3 x 34mm	271 x 213 x 36.4mm
	Panel Output	192 x 138 mm	260 x 202 mm
	Weight	Approx. 0.6 kg	Approx. 1 kg
	Mount	Panel Mount	Panel Mount
Environment	Protecting Structure	NEMA4/IP65 Compliant Front Panel	UL Type 4X (indoor use only)/ NEMA4 / IP65 Compliant Front Panel (2)
	Storage Temperature	-20°~60°C (-4°~140°F)	-20°~60°C (-4°~140°F)
	Operating Temperature	0°~50°C (32°~122°F)	0°~50°C (32°~122°F)
	Relative Humidity	10%~90% (non-condensing)	10%~90% (non-condensing)
Certificate	CE	CE marked	CE marked
	UL	cULus Listed
	ATEX	ATEX Zone 2/22 Category 3 G/D
Software		EasyBuilder Pro	EasyBuilder Pro

Key features

3.8'' STN monochrome display

Resolution: 240x96 dots

Degree of protection: IP67

Mini USB interface

SD/SDHC memory card slot for cards up to 32GB, class10 max. (GT02MQ2/GQ2)

Dimensions: 112x74x27mm

Graph, recipe and flow display functions

Through function for simultaneous debugging of the GT and PLC

GT link function - up to 32 Panasonic HMIs can be connected to one PLC

Multiple PLCs - up to 31 Panasonic PLCs can be connected to one HMI

Data logging function

Isolated power supply for enhanced reliability

GT02 Datasheet.pdf

Type	MT-8071iE , MT-8102iE
Size	7" , 10.1"

Specification		MT8071iE	MT8102iE
Display	Display	7″ TFT	10.1″ TFT
	Resolution	800 x 480	1024 x 600
	Brigthness (cd/m²)	400	350
	Contrast Ratio	500:1	500:1
	Backlight Type	LED	LED
	Backlight Life Time	>30,000 hrs.	>50,000 hrs.
	Colors	16.7M	16.7M
Touch Panel	Type	4-wire Resistive Type	4-wire Resistive Type
Touch Panel	Accuracy	Active Area Length(X)±2%, Width(Y)±2%	4-wire Resistive Type
Memory	Flash	128 MB	128 MB
Memory	RAM	128 MB	128 MB
Processor		32 bits RISC Cortex-A8 600MHz	32 bits RISC Cortex-A8 600MHZ
I/O Ports	SB Card Slot	N/A	N/A
	USB Host	USB 2.0 x 1	USB 2.0 x 1
	USB Client	N/A	N/A
	Ethernet	10/100 Base-T x 1	10/100 Base-T x 1
	WiFi	N/A	N/A
	COM Port	COM1: RS-232 COM2: RS-485 2W/4W COM3: RS-485 2W	Con.A:COM2 RS-485 2W/4W, COM3 RS-485 2W Con.B:COM1 RS-232 4W/COM3 RS-232″(1)
	RS-485 Dual Isolation	N/A	N/A
	CAN Bus	N/A	N/A
	Audio Output	N/A	N/A
	Video Input	N/A	N/A
RTC		Built-in	Built-in
Power	Input Power	24±20%VDC	24±20%VDC
	Power Isolation	Built-in	Built-in
	Power Consumption	450mA@24VDC	650mA@24VDC
	Voltage Resistance	500VAC (1 min.)	500VAC (1 min.)
	Isolation Resistance	Exceed 50MΩ at 500VDC	Exceed 50MΩ at 500VDC
	Vibration Endurance	10 to 25Hz (X, Y, Z direction 2G 30 minutes)	10 to 25Hz (X, Y, Z direction 2G 30 minutes)
Specification	PCB Coating	YES	N/A
	Enclosure	Plastic	Plastic
	Dimensions WxHxD	200.3 x 146.3 x 34mm	271 x 213 x 36.4mm
	Panel Output	192 x 138 mm	260 x 202 mm
	Weight	Approx. 0.6 kg	Approx. 1 kg
	Mount	Panel Mount	Panel Mount
Environment	Protecting Structure	NEMA4/IP65 Compliant Front Panel	UL Type 4X (indoor use only)/ NEMA4 / IP65 Compliant Front Panel (2)
	Storage Temperature	-20°~60°C (-4°~140°F)	-20°~60°C (-4°~140°F)
	Operating Temperature	0°~50°C (32°~122°F)	0°~50°C (32°~122°F)
	Relative Humidity	10%~90% (non-condensing)	10%~90% (non-condensing)
Certificate	CE	CE marked	CE marked
	UL	cULus Listed
	ATEX	ATEX Zone 2/22 Category 3 G/D
Software		EasyBuilder Pro	EasyBuilder Pro
