Panasonic FP7 Series
Panasonic Industry

PANASONIC FP7 Series

FP7 CPU

  • Equipped with a large memory capacity (up to 220k program steps or up to 500k data words) and a high-speed processor (11ns/step)
  • Local & remote connectivity
    The standard CPU boards with Ethernet interface offer connectivity without limits, from remote programming to monitoring and data logging to FTP server, MEWTOCOL (client/server), EtherNet/IP  and Modbus TCP. Together with the Mini-USB and the RS232C port, it is possible to connect up to 272 devices. Supported services include FTP client/server (file exchange), HTTP Client (data exchange / services with a HTTP server / cloud), and sending e-mails with attachments.
    The integrated web server allows access to the variables of the system / program or diagnostic information using a predefined page or a user-defined page created with the graphical tool “Web Creator” based on HTML5 technology. HTML pages can be viewed from any Internet browser even from mobile devices (smartphones and tablets).
  • Security & reliability
    Built-in program backup. Production can resume in the event of fault. Original program is immediately to hand.
  • Traceability
    Operational and program editing events are logged. Automatic logs of program download and upload are useful, especially for program debugging.
  • Maintenance
    Hour meter operation. The built-in clock/calendar function can be adjusted via Ethernet.


Download for user manual.

Type

AFP7CPS21

,

AFP7CPS31

,

AFP7CPS31E

,

AFP7CPS41E

Max. program capacity

64k steps

,

120k steps

,

196k steps

Brand

Panasonic Industry

0 People watching this product now!
Deskripsi

Deskripsi









Produk Terkait

Placeholder

AH1 (FJ) Switches

, ,
TYPICAL APPLICATIONS • Electric pot • Automobiles (Detection of key position), etc   Download For Specification
Quick view

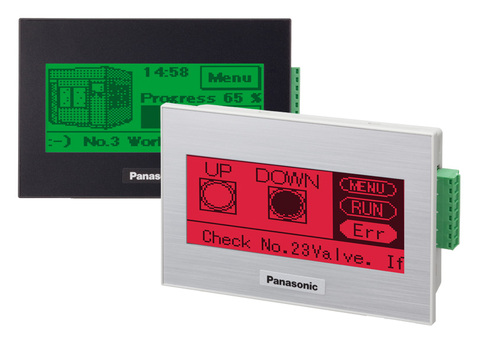

Panasonic HMI GT02 Series

, ,

GT02 series

The GT02 offers a host of innovative functions and is also pleasing to the eye. The brilliant 3.8'' graphical touch display is illuminated by a maintenance-free 3-color LED backlight which comes in 2 variations: green/orange/red and white/pink/red. The first SD memory card slot in the three-inch class allows for easy screen data transfer, data logging and storage. A variety of other needs from manufacturing sites were also covered, including the connector location for efficient wiring, improved environmental resistance rated IP67, and a newly designed bracket for more secure fastening. You can choose between 12 different models, which differ in:
  • communication interface (RS232C or RS422/RS485),
  • housing (pure black or hairline silver),
  • power supply (5V or 24V DC) and
  • SD memory card slot (with or without).

Key features

  • 3.8'' STN monochrome display
  • Resolution: 240x96 dots
  • Degree of protection: IP67
  • Mini USB interface
  • SD/SDHC memory card slot for cards up to 32GB, class10 max. (GT02MQ2/GQ2)
  • Dimensions: 112x74x27mm
  • Graph, recipe and flow display functions
  • Through function for simultaneous debugging of the GT and PLC
  • GT link function - up to 32 Panasonic HMIs can be connected to one PLC
  • Multiple PLCs - up to 31 Panasonic PLCs can be connected to one HMI
  • Data logging function
  • Isolated power supply for enhanced reliability
GT02 Datasheet.pdf
Quick view
Placeholder

Panasonic HMI GT707 Series

, ,
GT707 Touch Terminal
  • 7 inch TFT display
  • Wide screen, small body
  • Area available for display: 153.5 x 85.6mm
  • Body dimensions nearly the same as those of a 5.7 inch touch panel
  • 65536 colors
  • LC display equipped with long-life LED backlight
  • IP65
  • SD memory card slot
  • Clock/calendar function
GT707.pdf
Quick view
Sold out
Placeholder

Panasonic KT9 PID Temperature Controller, 96 x 96mm, 1 Output Relay, 100 → 240 V ac Supply Voltage

, , ,
Professional range of Digital Temperature Controllers to suit a wide variety of applications. Flush mount controller with membrane sheet keys. Dual LED display to determine the actual & reference values at a glance. Panasonic KT series provide an energy efficient solution without compromising on performance. Optional free software available from Panasonic to allow parameters to be set from a computer, along with data logging / monitoring facilities. This Temperature Controller software can be accessed via link in the datasheet Download for specification
Quick view

PANASONIC PLC FP-e: PLC for Panel ounting

FP-e

The new multi-talented PLC combines the performance of an FP0-C14C PLC with a 2-line x 5-character display for monitoring messages and machine data. The FP-e was specially developed for PLC applications in which a minimal display of information at the machine itself is sufficient for the operator, who in turn can select actions via keys on the front of the FP-e. Several product types are available, offering various combinations with real-time clock, thermocouples, and RS232C or RS485 interface.   Features:
  • 5-character, 2-line, 3-colour display Letters and numerical values can be displayed. Simple messages as well as timer/counter settings and elapsed values can also be displayed.
  • Matches FP0 intelligence (equivalent to FP0-C14C) Programming software and cables are common for all FP Series PLCs, therefore the FP-e can use programs created for other FP Series PLCs. FPWIN Pro and FPWIN GR offer a convenient configuration dialog for the screen display.
  • Built-in operation switch Displayed setting values can be changed. The operation switch can also be used to input data.
  • Panel mounted type The front of the unit is waterproof (in accordance with IP66 and IEC standards), and it can be used on equipment that requires washing, such as food processing machines. 70mm depth (front panel excluded).

Quick view

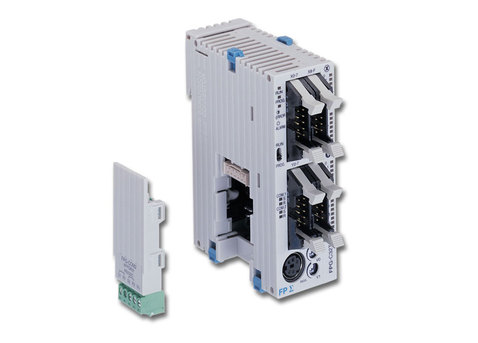

PANASONIC Powerful compact PLC: FPΣ

, , ,
