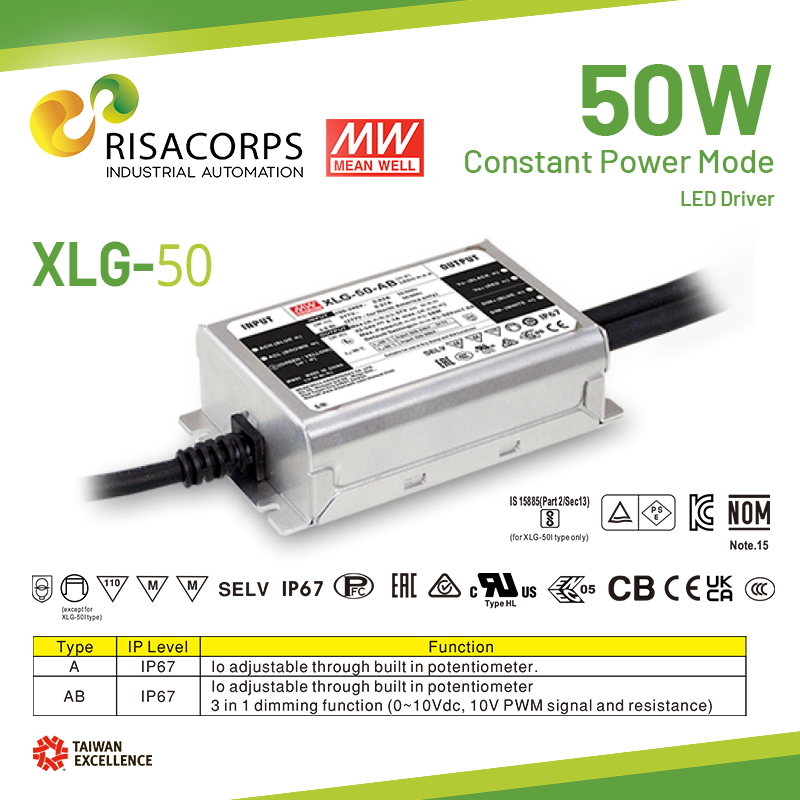

MODEL | XLG-50 – |
OUTPUT | RATED CURRENT (Default) | 1A |
CONSTANT CURRENT REGION Note.2 | 22 ~54V |
RATED POWER | 100VAC ~ 305VAC |
50W |
CURRENT RIPPLE | 5.0% max. @rated current |
OPEN CIRCUIT VOLTAGE (max.) | 57V |
CURRENT ADJ. RANGE | 0.53 ~ 2.1A |
SETUP, RISE TIME Note.3 | 500ms, 100ms/115VAC, 230VAC |
INPUT | VOLTAGE RANGE | Note.4 | 90 ~ 305VAC 127 ~ 431VDC (Please refer to “STATIC CHARACTERISTIC” section) |
FREQUENCY RANGE | 47 ~ 63Hz |
POWER FACTOR | PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to “POWER FACTOR (PF) CHARACTERISTIC” section) |
TOTAL HARMONIC DISTORTION | THD< 10%(@load≧50%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section) |
EFFICIENCY (Typ.) | Note.10 | 90% |
AC CURRENT | 0.57A / 115VAC 0.29A / 230VAC 0.24A/277VAC |
INRUSH CURRENT(Typ.) | COLD START 50A(twidth=350μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 |
MAX. No. of PSUs on 16A CIRCUIT BREAKER | 5 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC |
LEAKAGE CURRENT | <0.75mA / 277VAC |
NO LOAD / STANDBY POWER CONSUMPTION | No load power consumption <0.5W for A, <0.75W for I series Standby power consumption <0.5W for AB-Type(Dimming OFF) |
PROTECTION | OVER POWER | 110-150% Over Power Protection, recovers automatically after fault condition is removed |
SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed |
OVER TEMPERATURE | Hiccup mode, recovers automatically after fault condition is removed |
INPUT OVER VOLTAGE Note.8 | 320 ~ 370VAC (Shut down output voltage when the input voltage exceeds protection voltage,recovers automatically after fault condition is removed) |
Can survive input voltage stress of 440Vac for 48 hours |
ENVIRONMENT | WORKING TEMP. | Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) |
MAX. CASE TEMP. | Tcase=+90℃ |
WORKING HUMIDITY | 20 ~ 95% |
STORAGE TEMP. | -40 ~ +80℃ |
TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) |
VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes |
SAFETY & EMC | SAFETY STANDARDS Note.8 | UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC AS/NZS IEC BS EN/EN61347-1, AS/NZS BS EN/EN61347-2-13 independent, BS EN/EN62384; IP67; GB19510.1, GB19510.14, EAC TP TC 004,J61347-1(H29), J61347-2-13(H29),KC61347-1,KC61347-2-13, IS15885(Part2/Sec13)( for XLG-50I type only); NOM–058–SCFI–2017 approved |
WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC |
ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH |
EMC EMISSION | Parameter | Standard | Test Level/Note |
Conducted | BS EN/EN55015(CISPR15) ,GB/T17743 | —– |
Radiated | BS EN/EN55015(CISPR15) ,GB/T17743 | —– |
Harmonic Current | BS EN/EN61000-3-2 ,GB/T17625.1 | Class C @load≥50% |
Voltage Flicker | BS EN/EN61000-3-3 | —– |
EMC IMMUNITY | BS EN/EN61547 |
Parameter | Standard | Test Level/Note |
ESD | BS EN/EN61000-4-2 | Level 3, 8KV air ; Level 2, 4KV contact |
Radiated | BS EN/EN61000-4-3 | Level 3 |
EFT/Burst | BS EN/EN61000-4-4 | Level 3 |
Surge | BS EN/EN61000-4-5 | 4KV/Line-Line 6KV/Line-Earth |
Conducted | BS EN/EN61000-4-6 | Level 3 |
Magnetic Field | BS EN/EN61000-4-8 | Level 4 |
Voltage Dips and Interruptions | BS EN/EN61000-4-11 | >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods |
OTHERS | MTBF | 3931.6 K hrs min. Telcordia SR-332 (Bellcore) 394.6Khrs min. | MIL-HDBK-217F (25℃) | |
DIMENSION | 105*63*30mm (L*W*H) |
PACKING | 0.41Kg;24pcs/ 10.5Kg/0.81CUFT for A-type 0.42Kg;24pcs/ 11Kg/0.81CUFT for AB-type |
NOTE | - All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
- Please refer to “DRlVlNG METHODS OF LED MODULE”.
- Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
- De-rating may be needed under low input voltages. Please refer to STATlC CHARACTERlSTlC sections for details.
- The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
- This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly
 tc point (or TMP, per DLC), is about 75℃ or less. - Please refer to the warranty statement on MEAN WELL’s website at http://www.meanwell.com
- lnput over voltage only for XLG-50 l series ,and l series without UL/CSA certificate.
- The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- Only for XLG-50-A
- Products sourced from the Americas regions may not have the CCC/PSE/BlS/KC logo. Please contact your MEAN WELL sales for more information.
- For any application note and lP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
- Ripple & noise are measured at 20MHz of bandwidth by using a 12″ twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- To fulfill requirements of the latest ErP regulation for lighting fixture, this LED driver can only be used behind a switch without permanently connected to the mains.
- lf you need the NOM (Mexico) certificate, Please contact MEAN WELL sales representative for details.
※ Product Liability Disclaimer：For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx |
