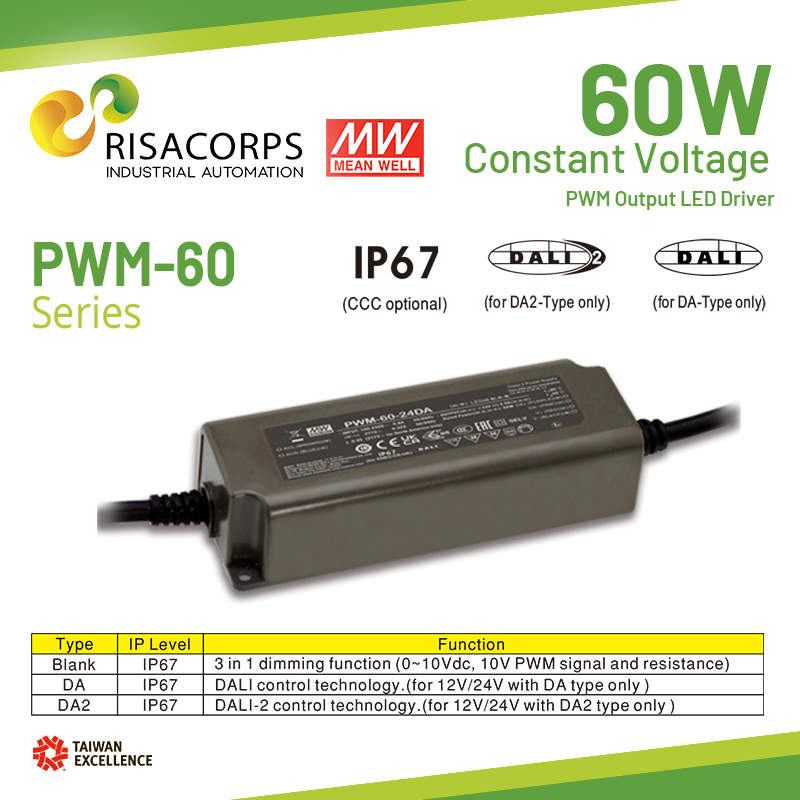

Seri PWM-60 adalah driver LED AC/DC LED 60W yang dilengkapi mode tegangan konstan dengan keluaran gaya PWM, yang mampu menjaga homogenitas kecerahan saat menggerakkan semua jenis strip LED.
PWM-60 beroperasi dari 90～305VAC dan menawarkan model dengan voltase pengenal yang berbeda-beda
12V dan 48V. Berkat efisiensi tinggi hingga 90%, dengan desain tanpa kipas, seluruh seri mampu beroperasi pada suhu casing -40℃ ~ +85℃ di bawah konveksi udara bebas.
Seluruh seri memiliki tingkat perlindungan masuknya IP67 dan cocok digunakan di lokasi kering, lembap, atau basah.
PWM-60 dilengkapi dengan fungsi peredupan yang memvariasikan siklus kerja keluaran, memberikan fleksibilitas tinggi untuk aplikasi strip LED.
Fitur
‧Keluaran gaya PWM Tegangan Konstan
‧Aplikasi penerangan darurat tersedia
menurut IEC61347-2-13
‧Fungsi PFC aktif bawaan dan desain kelas II/2
‧Konsumsi daya tanpa beban <0,5W
‧Sepenuhnya dikemas dengan tingkat IP67
‧Fungsi: peredupan 3 in 1 (redup-ke-mati); DALI/DALI-2
‧Tingkat peredupan minimum 0,2% untuk tipe DALI
Spesifikasi
|
MODEL |
PWM-60-12 |
PWM-60-24 |
PWM-60-36 |
PWM-60-48 |
|
|
OUTPUT |
DC VOLTAGE |
12V |
24V |
36V |
48V |
|
RATED CURRENT |
5A |
2.5A |
1.67A |
1.25A |
|
|
RATED POWER |
60W |
60W |
60.12W |
60W |
|
|
DIMMING RANGE |
0 ~ 100% |
||||
|
PWM FREQUENCY (Typ.) |
1.47kHz for Blank/DA-Type, 2.5kHz for DA2-Type |
||||
|
SETUP, RISE TIME Note.2 Note.9 |
500ms, 80ms/ 115AC or 230VAC |
||||
|
HOLD UP TIME (Typ.) |
16ms/115VAC or 230VAC |
||||
|
INPUT |
VOLTAGE RANGE Note.3 |
90 ~ 305VAC 127 ~ 431VDC (Please refer to “STATIC CHARACTERISTIC” section) |
|||
|
FREQUENCY RANGE |
47 ~ 63Hz |
||||
|
POWER FACTOR (Typ.) |
PF>0.97/115VAC, PF>0.95/230VAC, PF>0.92/277VAC @ full load (Please refer to “POWER FACTOR (PF) CHARACTERISTIC” section) |
||||
|
TOTAL HARMONIC DISTORTION |
THD< 20%(@load≧60%/115VAC, 230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION” section) |
||||
|
EFFICIENCY (Typ.) |
86% |
89% |
90% |
90% |
|
|
AC CURRENT (Typ.) |
0.8A / 115VAC 0.4A / 230VAC 0.32A / 277VAC |
||||
|
INRUSH CURRENT (Typ.) |
COLD START 50A(twidth=270μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 |
||||
|
MAX. NO. of PSUs on 16A CIRCUIT BREAKER |
9 units (circuit breaker of type B) / 16 units (circuit breaker of type C) at 230VAC |
||||
|
LEAKAGE CURRENT |
<0.25mA / 277VAC |
||||
|
NO LOAD POWER CONSUMPTION |
<0.5W |
||||
|
PROTECTION |
OVERLOAD |
108 ~ 130% rated output power |
|||
|
Hiccup mode, recovers automatically after fault condition is removed |
|||||
|
SHORT CIRCUIT |
Shut down o/p voltage, re-power on to recover(except for DA2-type) Hiccup mode,recovers automatically after fauit condition is removed (only for DA2-type) |
||||
|
OVER VOLTAGE |
15 ~ 17V |
28 ~ 34V |
41 ~ 46V |
54 ~ 60V |
|
|
Shut down o/p voltage, re-power on to recover |
|||||
|
OVER TEMPERATURE |
Shut down o/p voltage, re-power on to recover |
||||
|
ENVIRONMENT |
WORKING TEMP. |
Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) |
|||
|
MAX. CASE TEMP. |
Tcase=+85℃ |
||||
|
WORKING HUMIDITY |
20 ~ 95% RH non-condensing |
||||
|
STORAGE TEMP., HUMIDITY |
-40 ~ +80℃, 10 ~ 95% RH |
||||
|
TEMP. COEFFICIENT |
±0.03%/℃ (0 ~ 50℃) |
||||
|
VIBRATION |
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes |
||||
|
SAFETY & EMC |
SAFETY STANDARDS Note.5 |
UL8750( type ”HL” )( except for DA-Type), UL879( for 12V,24V Blank Type only), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, IP67,BIS IS15885(for 12,24, 48 Blank Type only), EAC TP TC 004, GB19510.1,GB19510.14 approved; Design refer to BS EN/EN60335-1; According to BS EN/EN61347-2-13 appendix J suitable for emergency installations(EL)(AC Input: 100-240Vac)(for DA2-Type only) |
|||
|
DALI STANDARDS |
IEC62386-101, 102, 207,251 for DA/DA2-Type only,Device type 6(DT6) |
||||
|
WITHSTAND VOLTAGE |
I/P-O/P:3.75KVAC; I/P-DA:1.5KVAC; O/P-DA:1.5KVAC |
||||
|
ISOLATION RESISTANCE |
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH |
||||
|
EMC EMISSION Note.6 |
Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3,GB17743 and GB17625.1,EAC TP TC 020 |
||||
|
EMC IMMUNITY |
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Line 2KV),EAC TP TC 020 |
||||
|
OTHERS |
MTBF |
2626.6K hrs min. Telcordia SR-332 (Bellcore) ; 227.1K hrs min. MIL-HDBK-217F (25℃) |
|||
|
DIMENSION |
150*53*35mm (L*W*H) |
||||
|
PACKING |
0.49Kg;30pcs/15.7Kg/1.0CUFT |
||||
