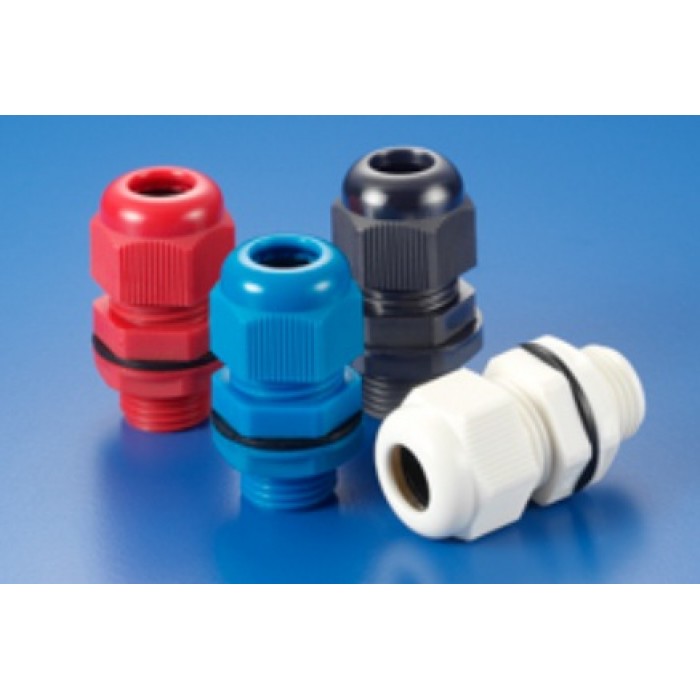

KSS Nylon Cable Gland – Metric Thread IP68

  • Material : UL approved Nylon 66, 94V-2
  • Color : Black, available i other colors
  • Suit a variety of applications, and diverse industries
  • Function : Mount gland to pre-drilled panel hole, use locknut to fix gland on board, insert the cables in the seal, and then tighten up the nut to hold cables in position
  • Feature : Simply and quickly fixed, high degree of the protection IP68 preventing dust and water
  • Part number AG-D series, smaller size, suit for smaller cabinet
  • Available to order the accessories separately. Follow the drawing and add the letter to the suffix part number, L for locknut, W for washer, B for gland body, S for seal, N for nut.
    *For Example, AGL-12 if you would like to only order locknut for M12x1.25

Type

AG-16

,

AG-16F

,

AG-20

,

AG-25

,

AG-32

,

AG-40

,

AG-50

,

AG-63

Category

Nylon Cable Gland – Metric Thread IP68

0 People watching this product now!
Deskripsi

Deskripsi

KSS NYLON CABLE GLAND

TypeOld / Alternative TypeCable RangeQty/Bag
AG-12 CG-123mm – 6.5mm50
AG-16 CG-165mm – 10mm50
AG-16F CG-16F5mm – 10mm50
AG-20 CG-2010mm – 14mm50
AG-25 CG-2513mm – 18mm50
AG-32 CG-3218mm – 25mm25
AG-40 CG-4022mm – 32mm10
AG-50 CG-5030mm – 38mm10
AG-63 CG-6334mm – 44mm10
