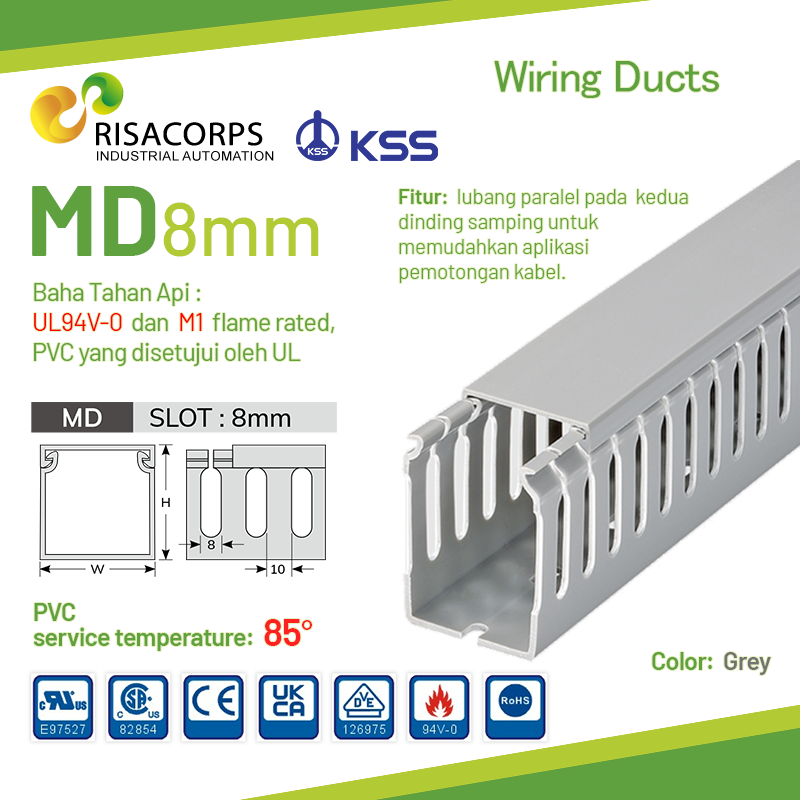

KSS MD-Series 8mm(2M) Wiring Duct slotted | kabel duct panel
- Material: UL94V-0 dan M1 tahan api, PVC yang disetujui UL
- Warna: Abu-abu.
- Uji UL hingga 50℃
| Panjang | 2 M |
|---|
0 People watching this product now!
Deskripsi
Deskripsi
KSS WIRING DUCT (SLOTTED) / kabel duct panel
Ducting kabel seri KSS MD adalah saluran atau penutup yang digunakan untuk mengelola dan melindungi kabel-kabel listrik dalam instalasi listrik. kabel duct panel ini dirancang dengan fitur-fitur khusus untuk memudahkan penataan kabel dan memastikan instalasi yang rapi dan aman. Seri KSS MD umumnya memiliki karakteristik sebagai berikut:
Lubang Paralel: Fitur lubang paralel pada kedua dinding samping untuk memudahkan aplikasi pemotongan kabel dan pengaturan kabel.
Bahan Tahan Api: Terbuat dari PVC yang telah disetujui oleh UL dengan rating tahan api UL94V-0 dan M1, yang berarti ducting ini memiliki ketahanan tinggi terhadap api dan aman untuk digunakan dalam berbagai aplikasi industri dan komersial.
Penggunaan: Ideal untuk manajemen kabel di panel kontrol, sistem telekomunikasi, dan instalasi listrik lainnya, membantu menjaga kabel tetap teratur dan terlindungi dari kerusakan fisik.
kabel duct panel seri KSS MD dirancang untuk memberikan solusi manajemen kabel yang efisien, aman, dan mudah digunakan dalam berbagai aplikasi.
| Item No. | W x H | Length |
| SLOT | ||
| 8mm | mm | |
| MD-0.5L | 15 X 25 | 2M |
| MD-0.7L | 20 X 20 | 2M |
| MD-0L | 25 X 25 | 2M |
| MD-1L | 25 X 45 | 2M |
| MD-1.1L | 30 X 30 | 2M |
| MD-1.2L | 33 X 33 | 2M |
| MD-1.5L | 33 X 45 | 2M |
| MD-2L | 45 X 45 | 2M |
| MD-2.2L | 50 X 50 | 2M |
| MD-2.5L | 65 X 45 | 2M |
| MD-3L | 33 X 65 | 2M |
| MD-4L | 25 X 65 | 2M |
| MD-5L | 45 X 65 | 2M |
| MD-5.5L | 60 X 60 | 2M |
| MD-5.7L | 65 X 65 | 2M |
| MD-6L | 72 X 64 | 2M |
| MD-6.5L | 33 X 100 | 2M |
| MD-6.6L | 37.5 X 100 | 2M |
| MD-6.7L | 48 X 100 | 2M |
| MD-6.8L | 55 X 100 | 2M |
| MD-6.9L | 75 X 75 | 2M |
| MD-7L | 70 X 100 | 2M |
| MD-7.1L | 75 X 100 | 2M |
| MD-7.2L | 100 X 50 | 2M |
| MD-7.5L | 100 X 75 | 2M |
| MD-8L | 100 X 100 | 2M |
| MD-9L | 120 X 75 | 2M |
| MD-10L | 150 X 75 | 2M |
| MD-12L | 150 X 100 | 2M |
| MD-15L | 200 X 100 | 2M |
| MD-21L | 200 X 150 | 2M |
| MD-22L | 200 X 200 | 2M |
| MD-30L | 300 X 100 | 2M |
