Panasonic Brand
AH1 (FJ) Switches
TYPICAL APPLICATIONS
• Electric pot
• Automobiles (Detection of key position), etc
Download For Specification
Download For SpecificationKT4H / KT4B – space saving, high perfomance
- Multi-input Versatile thermocouple, RTD, DC voltage and DC current input for temperature detecting sensors
- Simple operation enables highly accurate temperature control All required operations can be enabled by the front keys and highly accurate PID control mode ensures an input span of ±0.2%.
- DIN Rail mounting types are aligned taking global market demand into consideration The KT7 series is equipped with DIN rail mounting complying to DIN standards. Furthermore, because its control panel is compact, the KT7 saves space.
- Nine step pattern control possible. For KT2 series, despite DIN 48 × 24 size, selection is possible of control with fixed set point and nine step pattern control.
- Meets market demands for costeffectiveness The KT series offers both economy and high performance.
- The KT series complies with UL, CSA standards and CE marking.
- Improved visibility and ease of operation More compact than before The KT4H/KT4B series features the largest PV digit size in the industry. Visibility is improved with an 11-segment display. Connectable to a PC, it offers a full range of control and communication functionsN
Download for specificationsMINAS LIQI servo drives (low cost)
MINAS LIQI series servo drives are ideal for applications that require an affordable technological upgrade to improve reliability and performance. Machines for simple food processing, packaging, printing, metal processing, even small linear robots are but a few example applications for which MINAS LIQI drives are cut out. In combination with Panasonic FP series PLCs, e.g. FP0R and FP-X0, they can be used to realize simple motion solutions. Use our banner freeware PANATERM to configure MINAS LIQI.
Download For Specification
Download For Specification

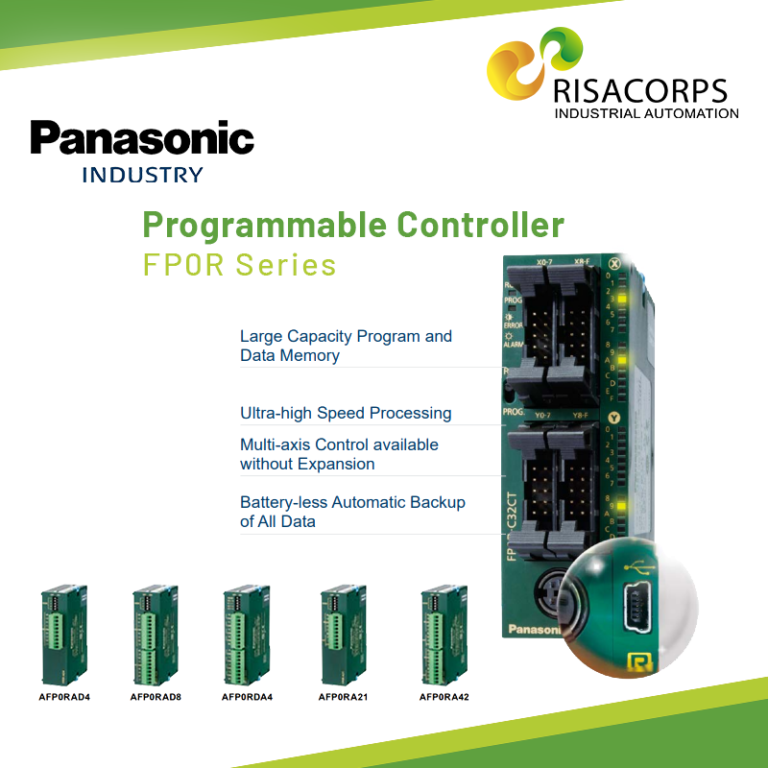

Panasonic FP0R Series
Ultracompact dengan fungsionalitas lebih
FP0R adalah standar baru untuk PLC kompak yang menawarkan fungsionalitas yang ditingkatkan dan kinerja yang optimal. Karena desainnya yang sangat ringkas, Panasonic FP0R sangat cocok untuk kabinet sakelar kecil dan lokasi lain dengan ruang terbatas. Hingga empat sumbu dapat diposisikan tanpa unit ekspansi, dan port USB TOOL memastikan transfer program yang sederhana dan cepat. FP0R meyakinkan dalam menuntut lingkungan seperti aplikasi pelabelan.
Katalog Panasonic FP0R Series Katalog Panasonic FP0R Analog Series
Katalog Panasonic FP Series Lineup

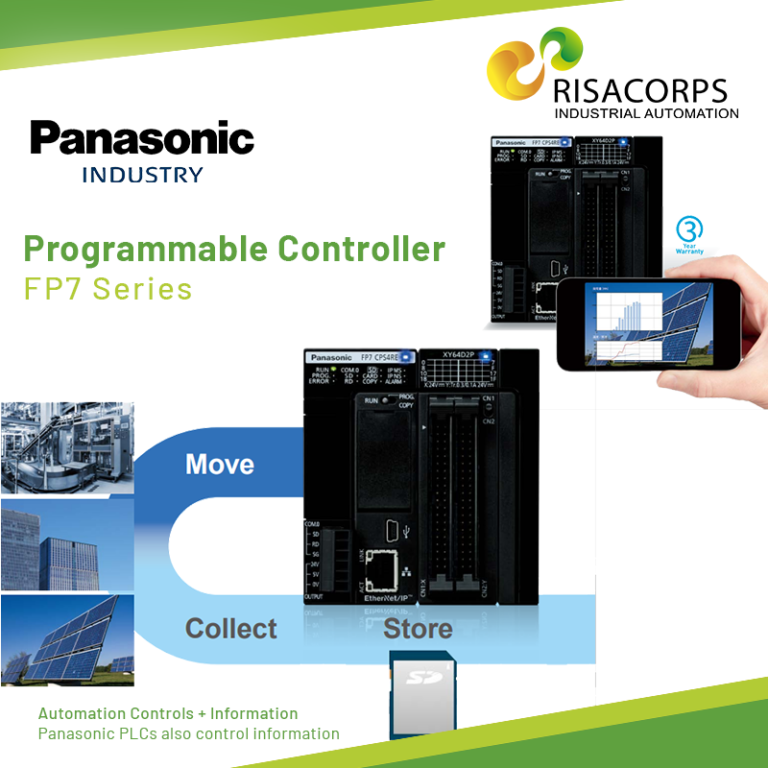

PANASONIC FP7 Series
FP7 CPU
- Equipped with a large memory capacity (up to 220k program steps or up to 500k data words) and a high-speed processor (11ns/step)
- Local & remote connectivity The standard CPU boards with Ethernet interface offer connectivity without limits, from remote programming to monitoring and data logging to FTP server, MEWTOCOL (client/server), EtherNet/IP and Modbus TCP. Together with the Mini-USB and the RS232C port, it is possible to connect up to 272 devices. Supported services include FTP client/server (file exchange), HTTP Client (data exchange / services with a HTTP server / cloud), and sending e-mails with attachments. The integrated web server allows access to the variables of the system / program or diagnostic information using a predefined page or a user-defined page created with the graphical tool "Web Creator" based on HTML5 technology. HTML pages can be viewed from any Internet browser even from mobile devices (smartphones and tablets).
- Security & reliability Built-in program backup. Production can resume in the event of fault. Original program is immediately to hand.
- Traceability Operational and program editing events are logged. Automatic logs of program download and upload are useful, especially for program debugging.
- Maintenance Hour meter operation. The built-in clock/calendar function can be adjusted via Ethernet.
Download for user manual.
Panasonic HMI GT02 Series
GT02 series
The GT02 offers a host of innovative functions and is also pleasing to the eye. The brilliant 3.8'' graphical touch display is illuminated by a maintenance-free 3-color LED backlight which comes in 2 variations: green/orange/red and white/pink/red. The first SD memory card slot in the three-inch class allows for easy screen data transfer, data logging and storage. A variety of other needs from manufacturing sites were also covered, including the connector location for efficient wiring, improved environmental resistance rated IP67, and a newly designed bracket for more secure fastening. You can choose between 12 different models, which differ in:- communication interface (RS232C or RS422/RS485),
- housing (pure black or hairline silver),
- power supply (5V or 24V DC) and
- SD memory card slot (with or without).
Key features
- 3.8'' STN monochrome display
- Resolution: 240x96 dots
- Degree of protection: IP67
- Mini USB interface
- SD/SDHC memory card slot for cards up to 32GB, class10 max. (GT02MQ2/GQ2)
- Dimensions: 112x74x27mm
- Graph, recipe and flow display functions
- Through function for simultaneous debugging of the GT and PLC
- GT link function - up to 32 Panasonic HMIs can be connected to one PLC
- Multiple PLCs - up to 31 Panasonic PLCs can be connected to one HMI
- Data logging function
- Isolated power supply for enhanced reliability
GT02 Datasheet.pdf Panasonic HMI GT707 Series
GT707 Touch Terminal
GT707.pdf
- 7 inch TFT display
- Wide screen, small body
- Area available for display: 153.5 x 85.6mm
- Body dimensions nearly the same as those of a 5.7 inch touch panel
- 65536 colors
- LC display equipped with long-life LED backlight
- IP65
- SD memory card slot
- Clock/calendar function
GT707.pdfPanasonic KT9 PID Temperature Controller, 96 x 96mm, 1 Output Relay, 100 → 240 V ac Supply Voltage
Professional range of Digital Temperature Controllers to suit a wide variety of applications. Flush mount controller with membrane sheet keys. Dual LED display to determine the actual & reference values at a glance.
Panasonic KT series provide an energy efficient solution without compromising on performance. Optional free software available from Panasonic to allow parameters to be set from a computer, along with data logging / monitoring facilities. This Temperature Controller software can be accessed via link in the datasheet Download for specification
Download for specification
PANASONIC Motor Induction 1 Phase Series
Features :
DOWNLOAD PDF FOR SPECIFICATION
- It is fitted for continuous running in one direction.
- Continuous time rating.
- The motor with national specifications is of heatproof class 120 (E); the motor with specifications compliant with overseas standards is of heatproof 130 (B).
- Because it is a capacitor-type induction motor, it has a high power factor and runs with a low noise level.
DOWNLOAD PDF FOR SPECIFICATION
PANASONIC Powerful compact PLC: FPΣ
FP-Σ
The FP-Sigma features the very latest control technology and a compact structural design. It is able to communicate with all major factory automation products. Of course you can program the FP-Sigma using our FPWIN Pro software (conforming to IEC 61131-3), and it is compatible with all Panasonic controllers. Other highlights:- Large program memory (32k commands)
- Large data memory (32k words)
- Efficient motion control functions - 50kHz fast counter input - 100kHz pulse output - convenient positioning commands
- Fastest processing time, 0.32µs/basic command
- Real-time clock
- Compact design (W 30 x H 90 x D 60mm)
- Top communication performance thanks to 3 possible serial interfaces on the CPU
- MODBUS RTU Master/Slave standard in all CPUs
Download for user manual.

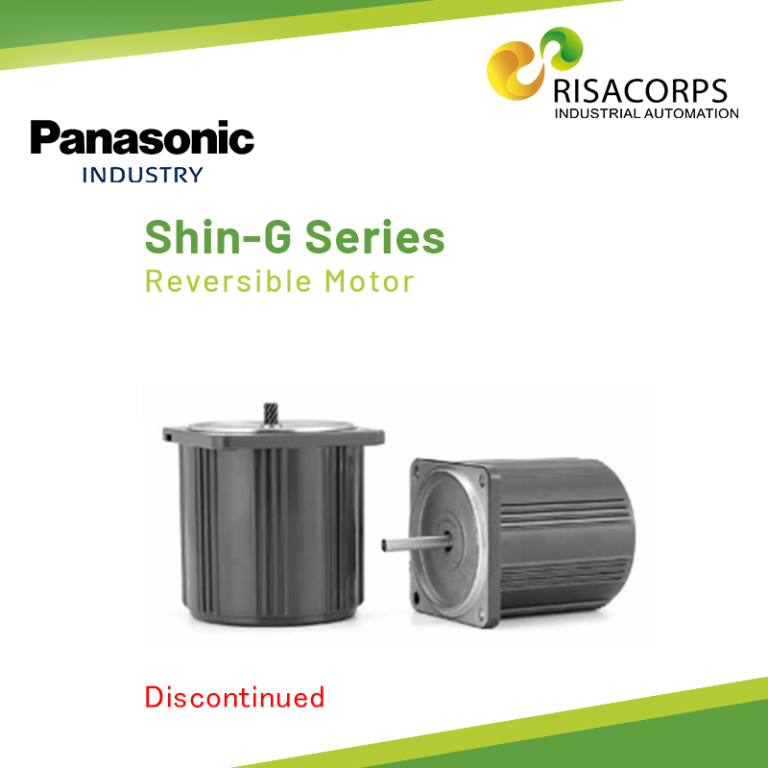

Panasonic Shin-G Series Reversible Motor
Offer super Instant reverse characteristics, Constant speed, Motor for Single-phase power supply, AC 100 V/200 V, 1 W to 90 W, Reduction ratio: 1/3 to 1/200, Round shaft
Katalog Panasonic Shin-G Series - Reversible Motor
Katalog Panasonic Shin-G Series - Reversible Motor
